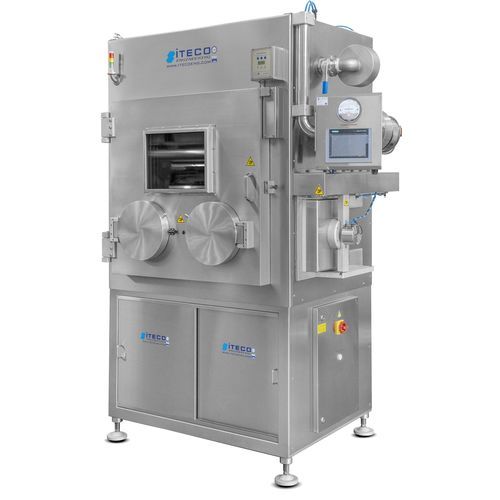

Radioisotope preparation isolator ISOCELL

for radiopharmacyISO class 5for radioactive products

ISOCELL ISO5 is an ISO 5 class isolator designed for the handling and preparation of radiopharmaceuticals, intended to ensure high standards of radiological protection and cleanliness of the working environment.

Features / technical specifications

• Intended use: handling and preparation of radiopharmaceuticals; cleanliness class ISO 5.
• Model reference indicated on the page: model 11016.
• Manipulation zone: 900 L x 600 D x 700 H mm.
• Right-wall pass-through hatch (clear opening): 200 x 200 mm.
• External dimensions: L 1300 x D 1000 x H 2300 mm.
• Total weight: approximately 5,000 kg.
• Shielding thicknesses:
  • Manipulation zone:
    • Front wall, worktop and side walls: Pb 60 mm + 20 mm plexiglass.
    • Rear wall: Pb 40 mm + 20 mm plexiglass.
    • X-ray viewing windows: equivalent to Pb 50 mm.
  • Service compartment:
    • Dose calibrator housing: Pb 50 mm.
    • Waste container: Pb 10 mm.
  • Top and lateral containment/filtration: Pb 10 mm.
