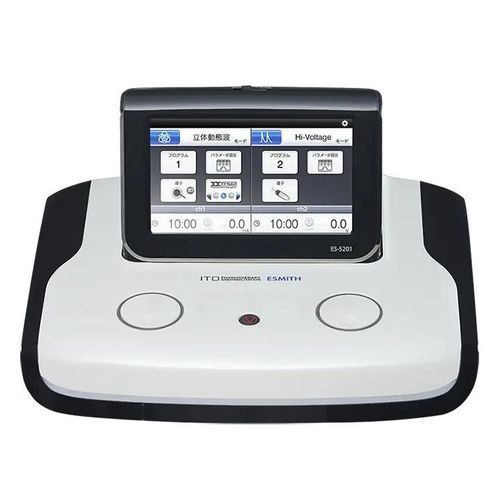

Transcutaneous neurostimulator Esmith ES-5201

for myostimulation

Product overview
The エスミス ES-5201 is a medical electrical stimulator offering six stimulation modes including 3D dynamic wave, Hi-Voltage, EMS and MCR. Advanced waveform algorithms enable effective deep-tissue approach. Simultaneous use of 3D and 2D modes and a new family of probes designed for integration with manual techniques and suction provide versatile treatment configurations.

Key features

• 3D treatment mode (3D dynamic wave + 3D EMS + 3D MENS) designed to deliver stereoscopic stimulation to deep tissues from multiple points.
• 2D treatment mode (combinations of Hi-Voltage / EMS / MCR) for targeted pain management and symptom-adapted therapy.
• Hi-Voltage capability with maximum output of 500 V (p-p) for high-voltage treatments.
• Operable as a set with a suction unit (interlocked medical suction device) for combined workflows.
• Simultaneous use of 3D and 2D modes across two channels; channels can also be used independently to treat multiple sites.
• Configurable with multiple probes and pulse-core options to match treatment points.
• Standard safety functions including open-circuit detection, emergency stop switch and various protection features.

Applications

• Physical therapy and pain treatment areas such as pain relief, improvement of muscle contraction deficits and functional recovery support.
• Combination therapies with ultrasound devices to achieve synergistic effects.

Pricing
Unit price: JPY 2,780,000 (excl. tax)
Set price (main unit + suction unit, etc.): JPY 3,380,000 (excl. tax)

Certification & classification
Regulated medical device (special maintenance management medical device), equivalent to Class I
Medical device certification number: 229AABZX00026A01

Accessories & options (examples)

• 3D probes for stereoscopic dynamic wave therapy
• Various 3D probe sets
• 3D release probe (optional)
• Pulse-core fixation belt (optional)
• 3D rubber electrodes & sheets for 3D rubber electrodes (optional)
• Suction unit (interlock option)

Technical specifications

• Model: ES-5201
• Power (main unit): AC 100 V (50/60 Hz)
• Rated power (main unit): 140 VA
• Output current (main unit): 500 mA (peak), maximum 70 mA (RMS)
• Output voltage (main unit): up to 250 V (peak, at 500 Ω load)
• Output frequency: up to 10 kHz
• Timer: up to 60 min (MCR, 3D MENS mode up to 600 min), device max 660 min
• Dimensions (W×D×H): 343 × 276 × 139 mm
• Weight (main unit only): approx. 3.9 kg
• Suction unit (interlock) Power: AC 100 V (50/60 Hz), Rated power: 100 VA, Dimensions (W×D×H): 345 × 315 × 115 mm, Weight: approx. 8.5 kg
• Main outputs: peak 500 mA and various output controls; multiple modes implemented (3D EMS, 3D MENS, Hi-Voltage, EMS, MCR, IM, etc.)
• Intended uses: pain relief, muscle contraction facilitation, rehabilitation, combination treatments with ultrasound
