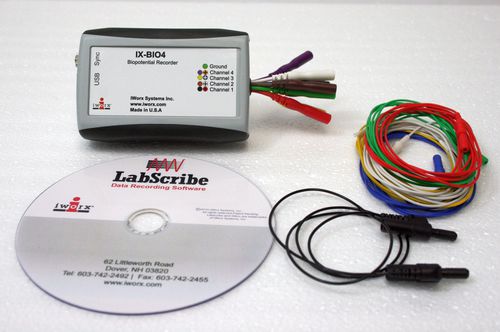

The IX-BIO4-SA system is optimized for mouse, rats and other rodents.
The IX-BIO4-SA system includes:
C-ISO-GNE5: a set of 5 platinum needle electrodes.
C-PB-P1 :Piggy-Back Male/Female Safety Pin Connector to Single Female Safety Pin Connector
LabScribe ECG Analysis module
The IX-BIO4 is a Four Channel Biopotential Amplifier that allows multiple channels of EMG, ECG, EOG to be recorded simultaneously from a single subject. The recorder is furnished with LabScribe Recording and Analysis Software and connects directly to a USB port on either a Macintosh or Windows PC.
ECG signals can be measured with the IX-BIOx. Measuring 2 channels of ECG, Lead I and Lead II allows LabScribe software to calculate Lead III, aVR, aVF and aVL . EMG signals can be measured at the same time as the ECG signals.
Application note on using the IX-BIO4-SA for recording 6 lead Rat ECG.
Analysing ECG’s recorded in LabScribe with Kubios HRV
ECG 01 - ECG Protocol Set-up
ECG 02 - Rat ECG Preparation
ECG 03 - ECG Recording
ECG 04 - ECG Analysis
Kinesiology is the study of human and nonhuman animal-body movements, performance, and function by applying the sciences of biomechanics, anatomy, physiology, psychology, and neuroscience. When studying kinesiology, surface electromyography (sEMG or Surface EMG) is the measurement of choice. The IX-BIOx enables 4 channels of EMG recordings, or a combination of EMG and ECG recordings.
