vibrating sieve shaker / for the pharmaceutical industry / sample preparation / bench-top

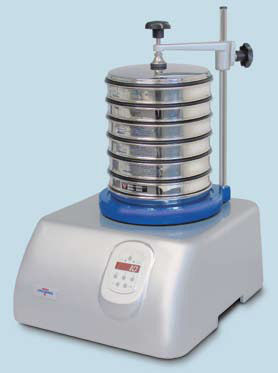

JEL 200-II

{{requestButtons}}

Characteristics

  • Motion type:

    vibrating

  • Applications:

    for the pharmaceutical industry, sample preparation

  • Configuration:

    bench-top

  • Display:

    digital

  • Speed:

    270 rpm (1,696.5 rad.min-1)

Description

Short Description

110 W
15 mm stroke of the vibrations plate
speed 270 rpm
standard voltage: 230 V / 50 Hz (special voltage is possible upon request)
noise level according to DIN 45635: approx. 70 dB(A)
can be used with 8 test sieves, each 25 mm high, plus cover and bottom our with 4 test sieves, each 50 mm hight, plus cover and bottom
net weight without test sieves: approx. 24 kg
net weight with test sieves: approx. 28 kg
dimensions: approx. 410 x 380 x 630 mm

Range of Application

The unit serves to analyse dry powdery to coarse grained materials. By using sieves with different mesh openings respectively perforations, the material sample is almost tolerance-free classified into its grain composition. The achieved reproducible values provide information making it possible to draw conclusions for milling, grinding and other processes.
Convincing facts

easy handling
speed and stroke optimized based on decades of experience
wide range of test sieves
simple exchange of the test sieves
easy cleaning
