Flow controller ES-13120DVT6

temperatureprocess

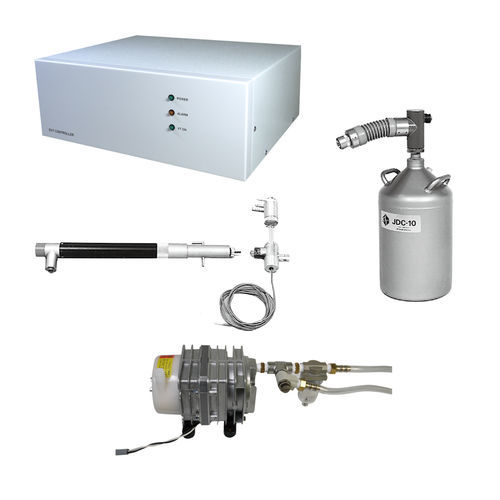

This is used to control the sample temperature during measurement in the range from -170°C to 200°C. By improving the response of the heater, very smooth temperature control with improved stability is achieved. Compatible with photo-irradiation attachment. Specifications Variable temperature range - -170 to 200°C Temperature stability - ± 0.5 °C Temperature control - Automatic PID method Metal dewar capacity 1) - 10 L Compressor flow rate - 17 L / min (Air) Power supply - AC 100 V, 5.5 A (incl. Compressor) Applicable cavity - ES-UCX2 / MCX1A / MCX3B / ODMRC / 14040DMC Sample tube - 5 mm OD Composition Heat blower tube Metal dewar Flow sensor Air compressor VT adapter Dewar adapter Cooling water dust remover
