Analysis laboratory bench 790 series

for chemical analysiscomposite materialfreestanding

Strong points

• Wide range of dimensions for educational lab layouts
• Laminated tops and coatings adapted to teaching and research needs
• Custom manufacturing and multiple RAL color options

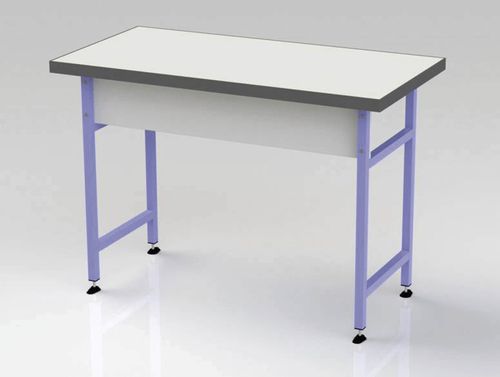

PresentationH-shaped laboratory workbench designed for school and teaching laboratories. Waterproof double-sided laminated top offers resistance to routine handling, chemicals and impacts while allowing easy daily maintenance. Mechanically welded steel H-frame ensures high stability and rigidity with adjustable leveling feet for precise alignment. 40 mm PVC shock-resistant edge protection and durable epoxy finish provide long service life under intensive use. Available in multiple sizes and finishes to match specific scientific disciplines (physics, chemistry, life sciences).

Frequently Asked Questions

• Purpose: Provides an ergonomic and secure workspace for middle and high school scientific experiments; suitable for most educational manipulations except very wet environments.
• Top specifications: 29.6 mm hydrophobic chipboard, double-sided laminated (CTBH, 650 kg/m²).
• Metal frame: Mechanically welded H-shaped legs in 30 x 30 x 2 mm steel tube; under-table stiffener in 30 x 30 x 2 mm tube; epoxy powder coating for improved chemical resistance; adjustable leveling feet on each leg.
• Customization: Wide selection of standard and custom dimensions; standard color RAL 5014 with other RAL options available.
• Safety & ergonomics: H-shape improves circulation and equipment organization; shockproof edging and robust assembly suitable for intensive school use.

Labels & manufacturing

• Made in France

Technical features (table)
Coating: Laminated
Height: 900 mm
Type: Single lab bench (H-frame)

Detailed technical features
Laminated top: Hydrophobic chipboard 29.6 mm thick, double-sided laminate (CTBH, 650 kg/m²). Edge protection: 40 mm grey PVC shockproof strip fitted with fir-tree tongue. Not suitable for permanently wet environments; resistant to standard educational handling and common laboratory chemicals.

Metal frame: Mechanically welded H-shaped legs in 30 x 30 x 2 mm steel tube. Under-table stiffener in 30 x 30 x 2 mm steel tube. Two upper and two lower bars ensure leg rigidity. Legs are fixed by screws to the stiffeners. Epoxy powder coating provides resistance to chemical products (acids). Standard color RAL 5014; other colors available.

Floor fixation: Each leg is equipped with adjustable screws for levelling and can be anchored to a depth of 50 mm to ensure high strength and rigidity of the bench.

Technical specifications

• Coating: Laminated hydrophobic chipboard, 29.6 mm (CTBH, 650 kg/m²)
• Edge protection: 40 mm PVC shockproof strip
• Frame: Mechanically welded H-shaped legs, 30 x 30 x 2 mm steel tube
• Under-table stiffener: 30 x 30 x 2 mm steel tube
• Reinforcements: 2 upper and 2 lower bars for leg rigidity
• Finish: Epoxy powder coating, standard RAL 5014 (other colors available)
• Height: 900 mm
• Suitable for: Educational use in physics, chemistry and life sciences (not for wet environments)
• Customization: Multiple sizes and manufacturing options available
