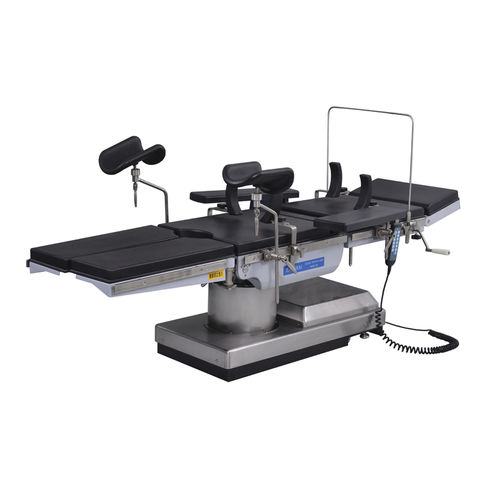

Universal operating table AG-OT007

electro-hydraulicTrendelenburgreverse Trendelenburg

Electro-Hydraulic Surgical Table AG-OT007 Universal operating table Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation. Specifications： Overall Length：2125mm Width：550mm Dimension of section： Head Section：250×550mm Back Section：465×550mm Waist Section：75×550mm Seat section：550×550mm Leg Section：600×240mm Min Height：600mm Max Height：950mm Adujst：350mm Range of movements： Reversed Trendelenburg：≥25° Trendelenburg：≥25° Lateral Til：≥15° Backward and Forward Movements：≥400mm Adjustment of sections： Head Section Raised from the horizontal：≥45° Head Section lowered from the horizonta：≥90° Back Section Raised from the horizontal：≥75° Back Section lowered from the horizontal：≥30° Leg Section Lowered from the horizontal：≥90° Leg section opened：≥90° Back rise(When optional)：≥80mm Horizonal ratation of tabletop：0～180°
