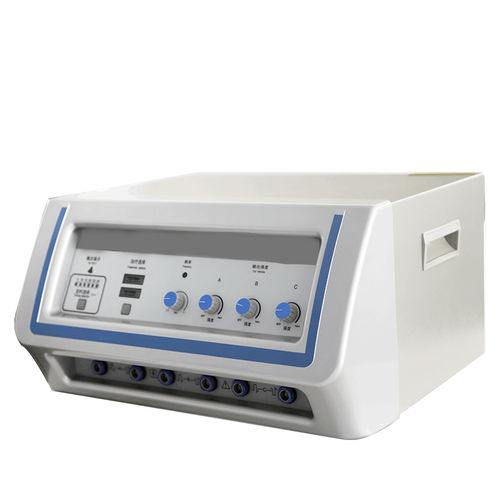

Electric stimulator AG-FED03

tabletopNMES3-channel

AG-FED03 Physiotherapy And Rehabilitation Equipment Three Channel Neuromuscular Electrical Stimulation Device Muscle Stimulator Specification: 1) Power: AC voltage 220V±22V, frequency 50Hz±1Hz 2) Output current: ≤80mA 3) Rated input power: 35VA 4) Output waveform: Two-way asymmetric square wave 5) Pulse frequency:First gear (completely denervated): The output pulse frequency is 500Hz, the modulating wave frequency is 0.5Hz～5Hz continuously adjustable, and the tolerance is ±15% Second gear (partial denervation): The output pulse frequency is continuously adjustable from 0.5Hz to 5Hz, and the tolerance is ±15% 6) Pulse width First gear (complete denervation): The pulse width is composed of 5 1ms, the modulation wave width is 10ms, and the tolerance is ±30% Second gear (partial denervation): The pulse width is 10ms, and the tolerance is ±30% 7) The effective value of each output current of the stimulator therapy instrument: ≤80mA, continuously adjustable 8) The treatment timing: 5min, 10min, 15min, 20min, 25min, 30min adjustable in six levels, the time tolerance of each level is ±10% 9) Product dimensions (length×width×height): 420mm×360mm×232mm, tolerance ±50mm 10) Functions: Output low-frequency pulse current with continuously adjustable frequency Three groups of six-channel pulse output Six channels pulse output(low frequency impulse) Intensity could be adjusted indepently
