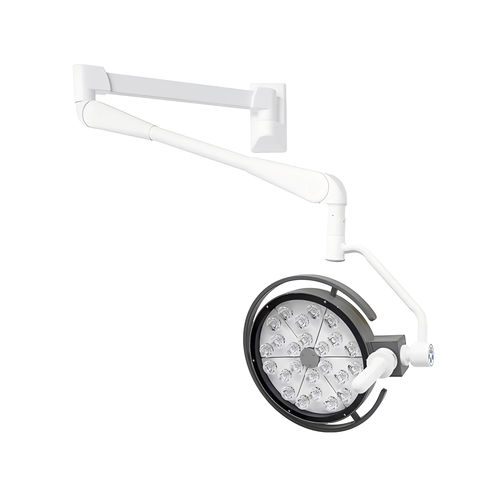

Wall-mounted surgical light FY-300W

LEDdermatologydental

Overview
The FY-300W LED surgical examination light is designed for hospital outpatient rooms, clinics, dermatology, stomatology and emergency settings. Equipped with imported German Osram LEDs and independent optical lenses for each LED, it offers stable, uniform illumination with high color fidelity and long lifetime. Fixed-focus optics, ultra-low thermal rise and low power consumption make it suitable for clinical examinations and minor surgical procedures.

Key Features

• Imported German Osram LEDs: 24 individual Osram LED modules with independent lenses for uniform, focused and flicker-free illumination.
• Long LED Lifespan: LED lifetime ≥ 60,000 hours to reduce maintenance and replacement frequency.
• 5-step Brightness Control: Adjustable from 20,000 to 80,000 Lux in 5 steps to match examination and minor surgery requirements.
• Button Color Temperature Adjustment: 3800K–5200K selectable to meet clinical visualization needs.
• High Color Rendering: Color Rendering Index Ra ≥ 95 for accurate tissue and wound color reproduction.
• Fixed Professional Focus: 180 mm fixed focal length with lighting depth ≥ 1200 mm for clear deep-field illumination.
• Ultra-thin ABS Head: Lamp head thickness ≤ 5 cm, diameter 320 mm; lightweight, durable and easy to clean and disinfect.
• Low Thermal Design: Area temperature rise < 0.5°C to prevent tissue dehydration and thermal injury during extended use.
• Energy-efficient Stable Power: 24W power consumption with built-in switching power supply; supports AC100–240V 50/60Hz.
• Flexible Long Arm Reach: 800 + 900 mm dual-arm reach for multi-angle positioning and comprehensive coverage.

Technical Specifications (table)
Parameter : Specification
Model : FY-300W
Control Type : Button Control
Lamp Head Housing : ABS Material
Lamp Head Thickness : ≤ 5 cm
Lamp Head Diameter : 320 mm
Light Source : Imported German Osram LED
LED Bulb Quantity : 24 pcs
Optical Lens : Independent lens for each bulb
Bulb Lifespan : ≥ 60,000 hours
Brightness Range : 20,000–80,000 Lux (5 steps adjustable)
Focus Adjustment : 180 mm fixed focus
Color Temperature : 3800K–5200K (button adjustable)
Color Rendering Index (Ra) : ≥ 95
Lighting Depth (L1+L2) : ≥ 1200 mm
Area Temperature Rise : < 0.5°C
Power Consumption : 24W
Power Input : AC100–240V 50/60Hz, with switching power supply
Arm Reach : 800 + 900 mm
Warranty : 2 years

Technical characteristics

• Model: FY-300W
• Light source: Imported German Osram LED (24 pcs)
• Power: 24W
• Brightness range: 20,000–80,000 Lux (5 steps)
• Color temperature: 3800K–5200K (adjustable)
• Color rendering index (Ra): ≥ 95
• LED lifespan: ≥ 60,000 hours
• Focus: 180 mm fixed focus, lighting depth ≥ 1200 mm
• Area temperature rise: < 0.5°C
• Lamp head housing: ABS, thickness ≤ 5 cm, diameter 320 mm
• Power supply: AC100–240V 50/60Hz (built-in switching power supply)
• Arm reach: 800 + 900 mm
• Warranty: 2 years
