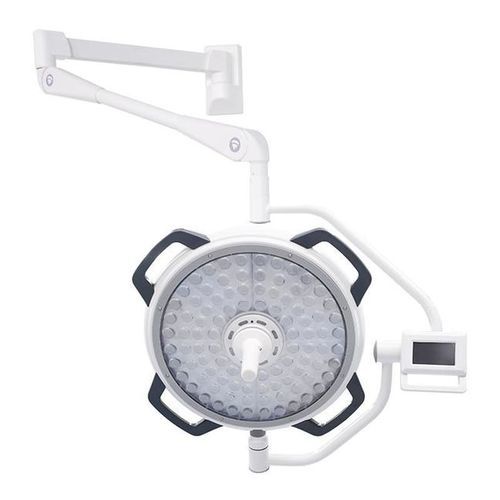

Wall-mounted surgical light Woosn900W

LEDfor operating rooms2-arm

Overview
The Woosn900W LED surgical light is a wall-mounted operating theatre luminaire designed for precise, high-fidelity tissue visualization. It features a 700 mm full-aluminum ultra-thin lamp head with LCD touch control, a central R9 RED RING to enhance red-tone rendering, and 176 German Osram LEDs for long life and accurate color rendition. Manual focus via a central handle and multi-step color temperature control enable adaptable illumination across procedures.

Key Features

• Ultra-thin lamp head (≤6 cm) in full aluminum for improved heat dissipation
• Central R9 RED RING technology to enhance visualization of red tones
• LCD touch control interface for intuitive operation
• 176 German Osram LEDs with >60,000 h lifespan
• Manual focus adjustment via central handle (160–350 mm)
• 5-step adjustable color temperature (3800K–5500K)
• Excellent color rendering (Ra ≥97; R9/R13/R15 ≥95)
• Lighting depth ≥1380 mm with minimal surface temperature rise (<0.5℃)
• 2-year comprehensive warranty

Additional Highlights

• Brightness adjustable from 40,000 to 160,000 Lux (20-step control)
• Optical lens positioned above each LED to concentrate illumination and reduce shadows

Technical Details (from product table)
Lamp Head Material: Full Aluminum
Lamp Head Thickness: ≤6cm
Lamp Head Diameter: 700 mm
Light Source: German Osram LED, >60,000 hours
LED Quantity: 176 pcs
Optical Lens: Over each LED
Brightness: 40,000–160,000 Lux (20 steps adjustable)
Focus Range: 160–350 mm (manual central-handle adjustment)
Color Temperature: 3800K–5500K (5 steps adjustable)
CRI (Ra): ≥97
R9 / R13 / R15: ≥95
Lighting Depth (L1+L2): ≥1380 mm
Surface Temperature Rise: <0.5℃
Power Consumption: 150W
Power Input: AC100–240V 50/60Hz (switching power supply)
Arm Reach: 800 + 900 mm
Warranty: 2 years

Specifications / Technical Specifications

• Lamp Head: full aluminum, ultra-thin (≤6 cm)
• Diameter: 700 mm
• LEDs: 176 German Osram LEDs, >60,000 h life
• Brightness range: 40,000–160,000 Lux (20 steps)
• Focus: manual 160–350 mm via central handle
• Color temperature: adjustable 3800K–5500K (5 steps)
• Color rendering: Ra ≥97; R9/R13/R15 ≥95
• Lighting depth: ≥1380 mm
• Power: 150W, AC100–240V 50/60Hz
• Arm reach: 800 + 900 mm
• Surface temperature rise: <0.5℃
• Warranty: 2 years
