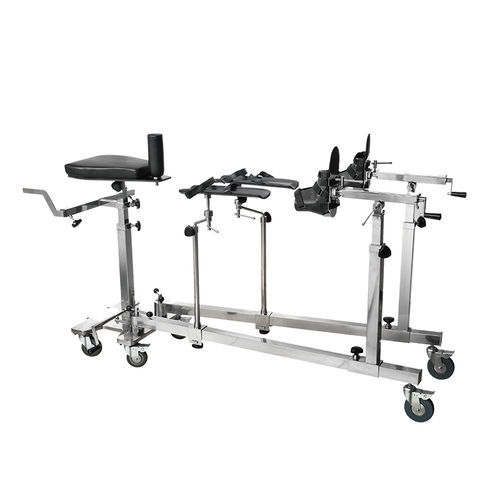

Knee surgery orthopedic extension device FY1006

1006 is used for orthopaedics traction,made of premium 304 stainless steel,can use with our any operating table models(Universal used) Product Details 1006 orthopedic traction can be used with various types of operating table, mainly used for lower limb orthopedics surgery.Orthopedic traction controlled manually, adjust the position by knobs and crank handles in order to make sure that patient can be operated by the lateral position and supine and other position. In case of any question, we therefore kindly ask you to contact after-sales service personnel or distributor. This operating manual is to be read and observed by any person using or handle this operating table.In addition to some accident, we obtest users to be familiar with the usage and the points of attention. Technical Date Traction Frame Lenth/width：1860/530mm Traction Frame Height：≤860mm Lifting range：≥320mm Traction range：≥200mm Foot Plate Traction range ：≥200mm Knee Crutch Lowest Elevation ：≤900mm Traction range：≥200mm Traction angle：rotation(up & down)：120° horizontal evagination of body frame：≥180° Packaging 1PCS in a Box Meas:1780×580×1120mm G/N.W:108/73KG
