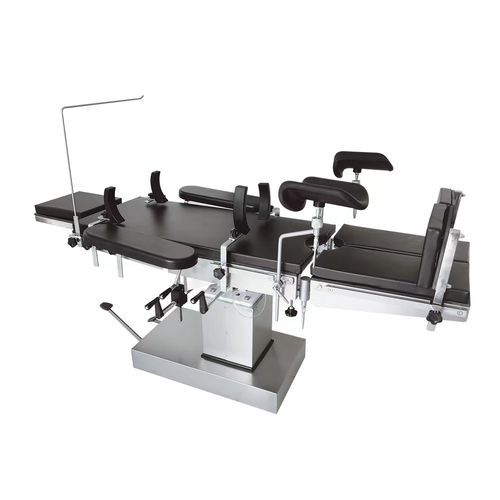

Universal operating table FY-S3001D

mechanicaltiltingmobile

S3001D is widely used in chest, Abdominal surgery, ENT, gynaecology and obstetrics, urology and orthopedics etc. Hydraulic lift by foot pedal, Position adjustments are needed on both sides of the operating table during surgery. The use of hand-screw drive table longitudinal movement, can be used with C-arm supporting the use of X-ray checkups and facilitate the film, the back and the legs folded plates are used servo-assisted gas spring, The base and column cover all made by premium 304 stainless steel. Good performance on anti-rust and easy to clean. Length Width Tabletop lowest height Elevation range ≥2050mm 500mm ≤750mm 250mm Parameter Movements Model：S3001D Tabletop trendelenburg Reverse Trendelenburg ≥25° Trendelenburg ≥20° Lateral Tilt (Left And Right) ≥18° Head plate Up ≥90° Down ≥90° Back plate Up ≥65° Down ≥15° Leg plate Up ≥15° Down ≥90° Outward ≥90° Kidney Bridge Elevation ≥120mm Horizontal Sliding Range ≥300mm Disposition Anaesthesia screen 1 piece Shoulder support (cushion） 2 piece Arm support（cushion） 2 piece Body support（cushion） 2 piece Leg support（cushion） 2 piece Foot plate（cushion） 2 piece Long Fixing Clamp 2 piece Fixing Clamp 9 piece Mattress 1 piece Packaging and delivery Packaging Wooden case Size 133*72*96 cm G./N.W. 210/175 kg
