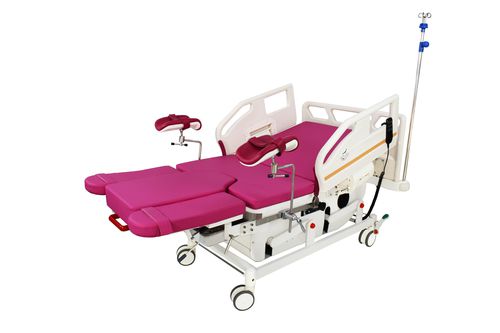

Gynecology operating table FY-M400

electrictiltingmobile

The original control system is safe and reliable, easy to operate, with low noise, and can be operated by accompanying family members and midwives. The left and right guardrails of the headboard are all made of high-strength plastic molded in one go, with a beautiful and generous appearance that can be easily disassembled or hidden. The overall lifting and lowering of the bed surface, folding of the back panel, and the forward and backward tilting of the entire bed are all controlled by electric motors. The armrests can be removed, and the leg supports can be removed. There is a dirt basin under the seat plate. The combination of movable leg rests on both sides, hidden auxiliary platforms, and flip style foot supports helps adjust the delivery posture of pregnant women and assist midwives in their delivery work. The overall structure of the bed is enclosed, dust-proof, and easy to clean. The casters adopt central control wheels, which have higher stability performance. Project Description Table specifications: total length 2000 ± 20mm, width 1000 ± 20mm The lowest table height (excluding mattress) is 600 ± 10mm, Maximum (excluding mattress) 890 ± 10mm Back panel folding angle: 65 °± 5 ° on the back panel The tabletop tilts forward and backward, with a front tilt of 5 °± 2 ° and a back tilt of 5 °± 2 ° Foot board corner leg board fork type: upper fold 55 °± 2 °, lower fold 5 °± 2 °, detachable Power supply conditions Power supply voltage: 220V ± 22V 50Hz Safe carrying capacity 200kg Self weight 100kg Service life of 10 years
