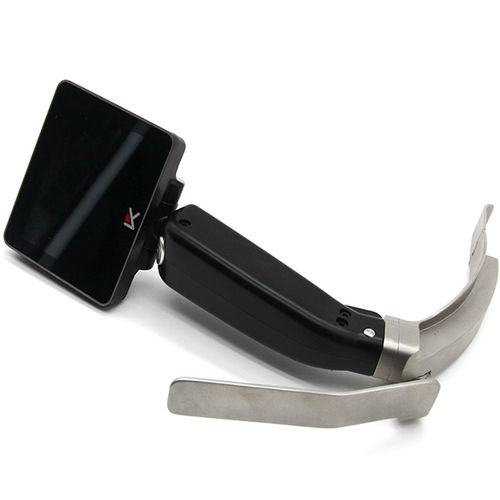

Video laryngoscope YS-IR
with integrated video monitorwith blade

video laryngoscope
video laryngoscope
video laryngoscope
video laryngoscope
video laryngoscope
Add to favorites
Compare this product


Characteristics

Type of video endoscope
video laryngoscope
Options
with integrated video monitor, with blade
Angle of view (°)

73 °

Description

It is well established that video laryngoscope improves laryngeal view as compared with direct laryngoscopy in patients with suspected difficult intubation and simulated difficult airway scenarios. … We also point out the important role of video laryngoscope as a tool for teaching and training in airway education. As a perfect solution for doctors in Anesthesia, ICU, Operation Room, Emergency Rescue to handle all kinds of airway management problems. 1. Clinical endotracheal intubation. 2. Simulation practice. 3. Clinical teaching. 4. Difficult airway intubation. 1.Photography, Video Record, USB Built in rechargeable battery, indoor/outdoor mode adjustable, 3 inch Touch screen monitor, fast and simple opteration. 2.Smart Anti - fog Technology. Smart heading chip. ensure instant Anti - fog by temperature control, start and work no need preheating Display - 3"(OLED) Camera Resolution - 960*480, 2Mpixels Illuminace(LUX) - 800~1500 light source - Natural white(LED) Rotating angles of the monitor in front and rear - 30 º~150 º Rotating angles of the monitor in right and left - 0 º~270 º Field of depth - 20~100mm Discharging time of battery - >4.5h Power supply - Rechargeable 18650 3.7 lithium battery Charging times - >500times Waterproof - IPX7 Weight of monitor - 225g Media - Class 6 Micro SD flash card Strorage - 8GB~64GB File format - JPEG, AVI Interface - 1 mini USB, 1 SD card slot Charger input - 110~220V AC 50Hz Charger output - 5V, 2600mA Charging time - <4(hrs) Temperature - 10℃~40℃ Humidity - 10%-90% Atmospheric pressure - 500hpa-1060hpa Temperature - -40℃~55℃ Humidity - ≤93%
