16-channel EEG system EK-8200D

prolonged EEGvideo-monitored EEGmedical research EEG

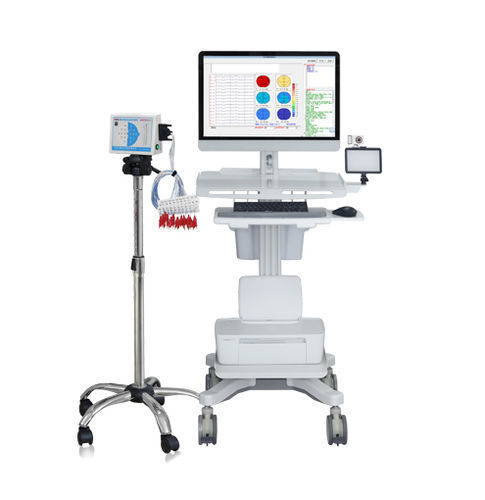

The EK-8200D is a trolley-mounted Digital EEG Topography system for clinical acquisition, analysis and management of brain electrical activity.

Product Overview

• The EK-8200D is a mobile trolley model combining EEG acquisition, topographic mapping and EEG monitoring for clinical workflows.
• Designed for routine neurophysiology, evoked potential mapping and functional brain assessment.

Principles

• Scalp EEG signals are recorded from electrodes at standard positions, filtered, amplified and converted to digital data. FFT-based spectral analysis generates frequency-band power for topographic mapping.

Advantages

• Supports unipolar, bipolar and user-defined montages for flexible recording.
• Real-time 16-lead acquisition with dynamic scrolling monitoring and on-demand capture.
• Backward/forward scrolling and arbitrary segment selection for frequency-band topography and temporal analysis.
• Case database with classification and multiple event annotation fields to support clinical documentation.

Applications

• Diagnostic support for functional disorders: epilepsy, psychiatric conditions, concussion and post-traumatic brain injury syndromes.
• Adjunct in early detection and differential functional assessment of organic brain disease, including tumor-related functional changes.
• Monitoring of treatment response and prognostic evaluation.
• Evoked potential topography for ophthalmology and otolaryngology assessments.
• Uses in anesthesiology, rehabilitation medicine and basic clinical research.

Characteristics

• Dedicated 24-inch color LCD for device display and monitoring (designed for continuous operation).
• Includes two EEG caps in different sizes for head fit variability.
• Integrated analysis software running on high-performance medical-grade computer hardware.
• Medical-grade camera subsystem for synchronized video capture, acquisition and playback.
• Variety of cable assemblies and medical silver electrode clips; USB-interface amplifier provided.
• Video surveillance and flash generator available; multifunction trolley supplied; HP color printer included.

Configuration

• High-performance all-in-one computer with 24-hour high-brightness LCD display.
• Two EEG caps (different sizes) and corresponding electrode holders.
• EK-8200D Intelligent Analysis System (software and hardware bundle).
• Medical-grade camera for synchronized video recording and playback.
• High-shielding connecting cables and medical silver electrode clips; imported precision amplifiers (assembled) with USB interface.
• Video surveillance module and flash generator; ABS injection-molded trolley; HP color printer.

Main parameters

• 16-lead real-time acquisition with dynamic scrolling monitoring.
• Support for scrolling playback, arbitrary data capture and topographic mapping across frequency bands (absolute and relative maps, histograms, dynamic waveform topomaps).
• Case database classification with multiple event descriptions and annotations.
• Integrated digital EEG, topographic mapping and EEG monitoring in one system.
• Hardware switching design to preserve waveform integrity and prevent distortion.
• Highly shielded electrodes and cables to reduce electromagnetic interference and signal attenuation; robust connector design to improve contact reliability and anti-interference performance.
• Supplied on a dedicated deluxe trolley with professional appearance.

Technical specifications

• Model: EK-8200D.
• Acquisition: 16-lead real-time acquisition, hardware switching to ensure distortion-free waveforms.
• Display: 24-inch color LCD, high-brightness suitable for continuous operation.
• Amplifier: USB-interface amplifier; imported precision amplifiers for accurate digital signal acquisition.
• Accessories: Two sizes of EEG caps, medical silver electrode clips, multiple types of connecting wires.
• Imaging: Medical-grade camera system for synchronized video capture and playback; video surveillance and flash generator included.
• Software/Analysis: EK-8200D Intelligent Analysis System with topographic mapping (absolute/relative maps, histograms, dynamic waveform maps) and case database management.
• Physical: ABS injection-molded trolley; HP color printer included.
