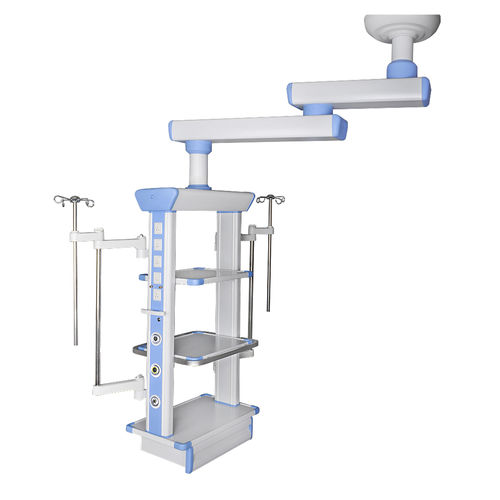

Ceiling-mounted medical pendant YF-EP-02D

intensive carefixed2-arm

Technical Parameters ● Function cabinet rotation angle: - 340° ● Cross arm rotation angle: - 340° ● Rotation arm length: - 1000mm ● Gas outlets: - Oxygen*1 - Vacuum*1 - Air*1 - CO₂*1 ● Electric sockets (220V/10A): - 8 pcs ● Ground terminal: - 2 pcs ● Net connect (RJ45): - 1 pc ● Adjustable stainless steel IV pole: - 1 set ● Syringe pump: - 1 set ● Loading capacity: - 150kg ● 3-layer platform (height adjustable), round corner with anti-collision design ● Brake system to avoid pendant moving ● One drawer Main Features ● High grade aluminium alloy main body ● Powder-coated surface ● Ceiling mounted system, stable and firm ● Gas connection with different colors and shapes to avoid wrong connection ● Gas outlets life: insert&pull out more than 20000 times ● Secondary seal, with gas maintenance
