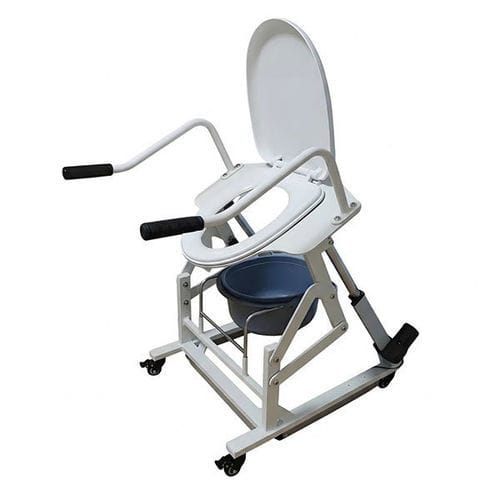

Toilet lift with armrests A16

with lidelectricfor bathrooms

Product overview
The A16 toilet lift chair is a dual-motor assisted toileting device engineered for heavy-duty use and users with limited mobility. Its synchronous dual-motor lift provides balanced, stable support and a 150 kg rated load for reliable performance in clinical and residential care settings.

Core features

• Powerful dual-drive synchronous system - Two coordinated motors deliver even thrust and maintain left-right balance throughout the lift cycle, reducing lateral sway when the user's center of gravity shifts.
• 150 kg rated load - Reinforced, thickened alloy-steel frame designed to support larger users and frequent institutional use without structural fatigue.
• Ergonomic assistance for standing - Extended wraparound armrests and a simulated arc lift trajectory combine vertical lift with a slight forward tilt to mirror natural standing motion and minimize knee and hip stress.
• Flexible toilet configurations - Built-in, independent pull-out commode with flip-top lid for use as a toilet seat or portable bedside commode; base clearance allows positioning over irregular toilet shapes without modification.
• Safety and durability - High-sealing waterproof motor, anti-corrosion frame coating, and four silent omnidirectional casters with rear one-button locks to secure the device during transfer and standing.

Technical specifications
Performance indicators: Technical parameters

• Model: A16
• Lifting method: Dual-motor synchronous electric lifting
• Rated load: 150 kg (330 lb)
• Frame material: Reinforced alloy steel; medical-grade environmentally friendly plastic components
• Control: One-button hand controller
• Built-in commode: Independent pull-out toilet with flip-top lid (portable commode function)
• Wheels: Four independent locking silent omnidirectional casters (rear with one-button lock)
• Ergonomics: Extended wraparound armrest; simulated arc trajectory with slight forward tilt
• Protection: Waterproof/high-sealing motor; anti-corrosion frame coating
• Recommended applications: Rehabilitation centers, institutional and premium elderly care, intensive home care

Advantages summary

• Stability: Dual-motor linkage maintains balanced lift under variable load conditions.
• Capacity: Engineered for a 150 kg rated load suitable for heavy-duty use.
• Versatility: Combines toilet assistance, portable commode and standing aid in one unit.
• Serviceability: Industrial-grade materials and sealed motor improve durability in humid environments.

Technical characteristics

• Model: A16
• Lifting: Dual-motor synchronous electric lifting
• Rated load: 150 kg (330 lb)
• Frame: Reinforced and thickened alloy steel; medical-grade plastic parts
• Controller: One-button hand controller
• Commode: Independent pull-out commode with flip-top lid
• Casters: Four independent locking silent omnidirectional casters (rear with one-button lock)
• Ergonomic features: Extended wraparound armrests; arc-simulated lift with slight forward tilt
• Protection: High-sealing waterproof motor; anti-corrosion coating on frame
• Typical use cases: Rehabilitation centers, elderly care facilities, intensive home care
