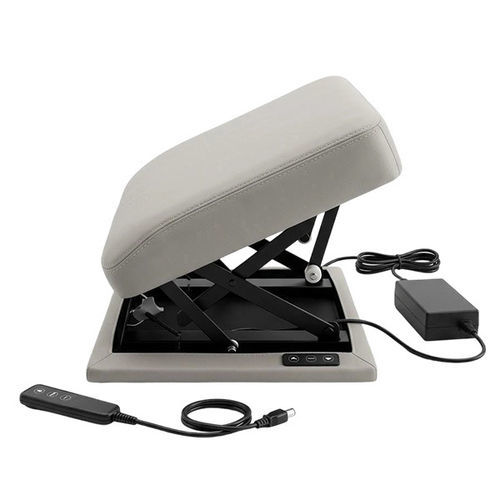

Electric patient floor lift A17

portablefor disabled peopletransportable

Product Overview
The A17 is a portable electric standing aid designed for clinical and home-care environments. It is positioned directly on existing sofas, dining chairs or office chairs to convert standard seating into powered seating. Using a silent single-motor actuator and a precision scissor lift mechanism, the device gently elevates and provides a controlled forward tilt to the hips, assisting elderly people with lower limb weakness and postoperative or rehabilitation patients to stand with reduced joint stress. The unit supports up to 100kg and combines an antibacterial PU leather cover with a low-profile steel chassis for discreet integration into care settings and modern interiors.

Core details introduction

• Core power source: Silent single-motor actuator
  • Smooth and quiet lifting: The integrated single electric drive ensures a steady, low-noise lift without sudden surges. Adjustment of lift angle and height is performed via a wired hand controller for predictable motions suitable for assisted transfers.
  • 100kg rated load: High-strength scissor lift structure provides stable support up to 100kg while minimizing sway and deformation during use.
• Ergonomics and comfort design
  • Thick, high-resilience seat cushion: Antibacterial PU leather exterior with high-density foam core ensures pressure distribution and easy cleaning for clinical use.
  • Natural standing trajectory: The lift path is engineered to produce a gradual forward tilt as height increases, guiding the center of gravity forward to reduce instantaneous loads on knees and hips during standing.
• Portability and compatibility
  • No installation required: Ready to use out of the box; transferable between sofas, dining chairs and office chairs without furniture modification.
  • Low center of gravity and non-slip base: The chassis sits close to the seat plane and includes anti-slip features to prevent cushion displacement during powered assistance.
• Control and power supply
  • Dual control modes: Wired hand controller with clear buttons plus an emergency side button on the base for caregiver intervention.
  • External AC adapter: Low-voltage external power supply for safe, continuous plug-in operation; adapter is easily replaceable.

Classification
Standing & Living Aids

Technical specifications

• Product Model: A17
• Drive: External AC adapter / Single motor
• Rated load: 100kg
• Materials: High-strength carbon steel frame / Antibacterial PU leather
• Control: Wired hand controller + side integrated buttons
• Suitable for: Sofas, standard chairs, bedside seating for elderly, office chairs
