Automatic packaging machine
floor-standingcaseblister

automatic packaging machine
automatic packaging machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Configuration
floor-standing
Container type
case, blister
Application domain
medical industry
Weight

2,000 kg
(4,409.2 lb)

Length

3,900 mm
(153.54 in)

Width

2,000 mm
(78.74 in)

Height

2,500 mm
(98.43 in)

Description

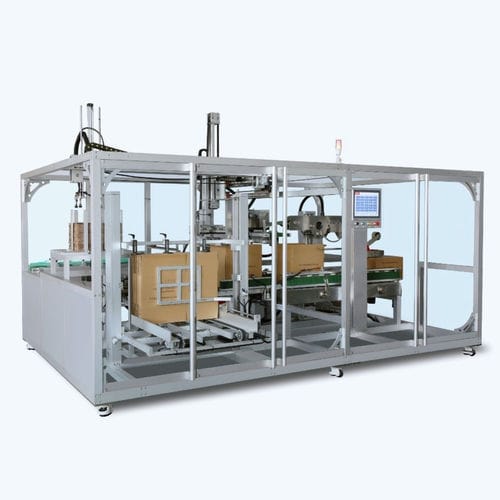

Case Packer is an End-of-Line Packaging Machine. It can pack cartons or batch-packed cartons into cardboard cases ready for dispatch. All the steps, from erecting blank cardboards and filling of cases, to seal the top and bottom flaps with adhesive tape or hot-melt adhesive (optional), are well-engineered for precision performance. It also can be connected to a packaging line with Blister Machines, Cartoners, Overwrappers, or Stretch-Banding Machines Max. Output: 5case/min. Max. Case Size: 650×450×400mm Min. Case Size: 300×180×150mm Machine Power: 7.5kw Air Pressure: 0.6Mpa Machine Dimension(L×W×H): 3900×2000×2500mm Machine Weight: 2000kg
