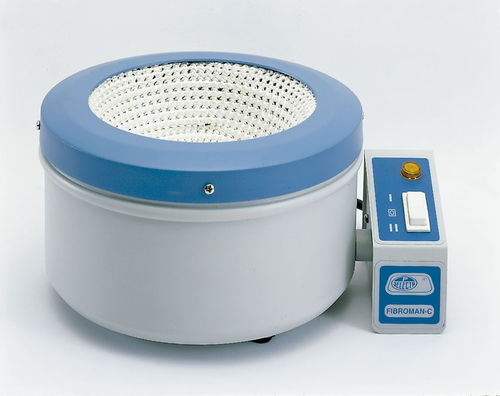

Heating mantle without display Fibroman-C

DUAL HEATING POWER. TEMPERATURES UP TO 400 °C. SAFETY: FOLLOWING CE STANDARDS, IN THE CASE OF LIQUID SPILLS AN EARTH WIRE IS WOVEN INTO THE MANTLE TO PREVENT ELECTRIC SHOCKS. With power heating switch selector COMMON FEATURES 1. Hand woven mineral wool with flexible braiding, which adapts snugly around the flask, with drain hole, replaceable . 2. The heating element is distributed homogeneously throughout the mantle. Connectors and cables are protected by mineral fibre tubes. Efficient low power consumption of 1 w/cm2. Maximum mantle temperature of 400 °C. 3. Double walled fibre wool thermally insulated casing. 4. Pure Nickel connection terminals protected by mineral fibre tubing that prevent the deterioration of the contact due to high temperature. Support for retort bar. APPLICATIONS For digestion distillation, extraction, evaporation and boiling processes. TECHNICAL DESCRIPTION • DUR ALLOY aluminium exterior case with epoxy coating. • Suspended mineral wool woven heating mantle. • Heating element homogeneously distributed throughout the woven mantle. • Thermally insulated case, mineral wool fibre insulation. • Nickel connectors. • Retort stand clamp at the back of the unit. • To prevent breakage or spills a drain hole is provided at the bottom of the mantle. • Safety earth connection.
