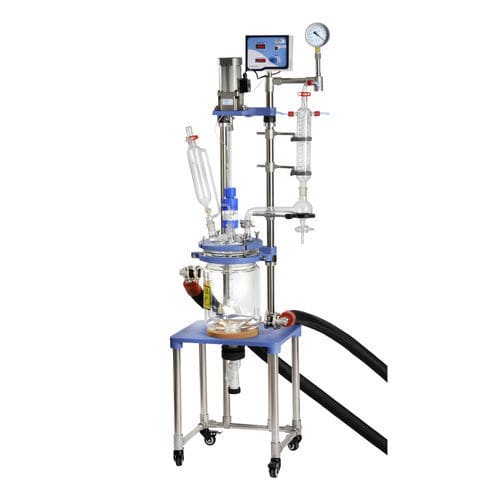

Laboratory reactor RE-605

for scientific researchfor productionreflux

APPLICATIONS This equipment is designed for reflux and distillation operations with a stirring element, for all laboratory’s pilot plant operations and small productions. FEATURES Reactor module built-in, base made of glazed steel in epoxy and tubular structure in stainless steel AISI 304, equipped with an engine group stirring and a reaction jacke- ted borosilicate glass 3.3 with graduation to temper, for a volume of 4-20 liters in “RE-620” model and 1-5 liters in “RE-605” model. Stirring anchor blade and elements in contact with the liquid or reaction steam, composed of borosilicate glass and PTFE. Addition and reflux models. Optional: - Configurations for distillation can be supplied. - Amber glass finish. - Voltage 110V / 60 Hz. CONTROL PANEL Main switch ON / OFF. Regulator knob for stirring speed from 0 to 500 rpm. Temperature and RPM digital indicator. ACCESORIES pH analyser temperature from -10oC up to 140oC. 3.5" color touch screen. 8 digital inputs, 2 configurable analog and 6 relay outputs for signaling and control. Communications: 485 for ARC sensor network. IP-65 box. RS-232 output for connection to a computer. Possibility of performing PID control loops. GSM, RED, TCP / IP modem connections, Probes: O2 , CON, VCD and Redox. Part number 4120824 (For measurement and reading only). Part number 4120823 (For measurement, reading and control). HT glass sensor pH 0-14 + Ta -10 at 100 oC. Part number 4120801 ARC HT sensor pH 0-14 + Ta -10 at 140 oC. Part number 4120822 Glass sensor adapter for R-605. Part number 4120802 Glass sensor adapter for R-620. Part number 4120803 Digital thermometer “TC-9226-A”
