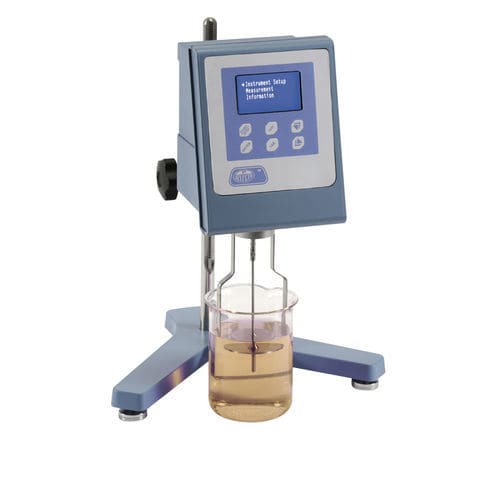

Automatic viscometer STS-2011

laboratory

MODEL WITH TEMPERATURE READOUT AND SHEAR RATE MEASUREMENT AND SHEAR STRESS. FEATURES 10 different options of language. L.C.D. display of parameters and results. Parameters display: - Selected speed . . . . . . . . . . . . . . . . . . . . . . .r.p.m. - Selected spindle - Viscosity result . . . . . . . . . . . . . . cP (mPa-s) or cSt. - Base scale percentage . . . . . . . . . . . . . . . . . . . .% - Sample temperature: . . . . . . . . . . . . . . . .°C or ° F. - Deformation ratio (with special spindle) - Torsion force (with special spindles) - Density (input by the user) . . . . . . . . . . . . . . . . . . . . . .g/cm3. This instrument determines both relative and absolute viscosity. Data can be changed between S.I. and C.G.S. Automatically checks for correct operation point by scanning at different speeds. Auto alarm in the case of any fault being detected. Off scale detection and indication by an audible and visual signal. Step controlled speed to prevent spindle vibrations. Calibration by the user himself. 18 preselected speeds from 0.01 a 200 r.p.m. The operator can select any speed within this range. USB port. Mains power surge protection. 10 memoirs of working programs. TECHNICAL DATA Temperature range:- from -40 °C to + 300.0 °C (- 40.0 °F to + 572.0 °F). - Resolution °C: 0.1 °C (0.1722 °F). - Precision °C: ± 0.1 °C. - Probe type: Pt 100. Direct results in cP(mPa-s) or cSt.: models STS-2011 L & R. Direct results in Poise (Pa-s) or St.: model STS-2011 H. Precision: ±1% base scale. Supplied complete with: - Anti shock carry case. - Main unit. - Support base. - Spindle protector. - Spindle support. - Set of spindles (model dependant) (see table).
