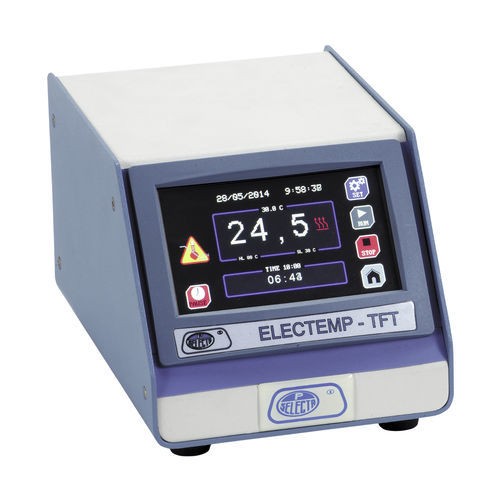

Temperature control unit Electem-TFT

laboratorywith touchscreen

Reading temperature range from -150 °C to 1300 °C. Stability: ±0.1 °C. Resolution: ±0.1 °C Pt 100 / ±1 °C type K probe. Panel Set temperature and time indicator Temperature limit indicator Virtual timer button Virtual reverse button Virtual start button Virtual stop button Virtual programming button Dimensions (H × W × D) 10.5 × 13.5 × 21 cm Weight 1.25 kg Power Consumption 3100 W Included Pt100 probe Type K probe Screen 4.3-inch TFT touch Interfaces USB output: yes RS-232 output: yes Controls & Safety Main switch: yes Fuse protection: yes Audio-visual alarm: yes Safety thermostat software: yes Power Output 3100 W, 230 V (Schuko socket) Functions Clock calendar: yes Self diagnosis: yes Heat / cold regulation: yes Probe error detection: yes Temperature control autotuning: yes Rise ramps between segments: yes Alarms and incidents memorization: yes Programming Work programs: up to 10 Segments per program: up to 6 Segment stability time: from 1 min to 99 h Connection / disconnection programming: yes Probes & Connectors PT100 probe connector: yes Type K thermocouple probe connector: yes Configurable Parameters Date / time Temperature correction Data collection interval Language (English, Spanish and French) °C / °F selection Over- and under-temperature limits Memory & Logs Low temperature alarms storage: date, start time, end time and temperature Network failure memorization detection: start and end date, time Applications Thermometer reader application: −150 °C to +1300 °C
