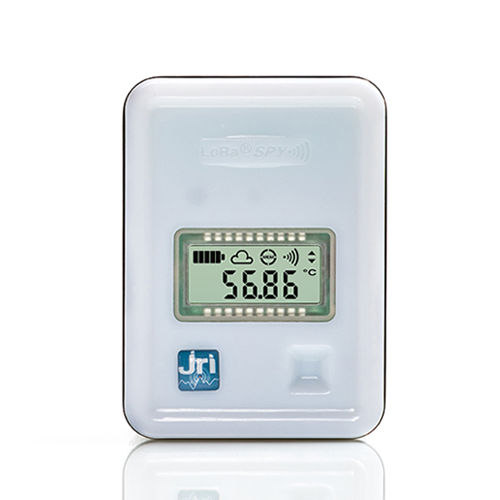

Temperature data-logger LoRa® SPY T4
for temperature traceabilitytraceabilityalert management

Temperature data-logger - LoRa® SPY T4 - JRI - for temperature traceability / traceability / alert management
Temperature data-logger - LoRa® SPY T4 - JRI - for temperature traceability / traceability / alert management
Add to favorites
Compare this product

Characteristics

Data type
temperature
Applications
for temperature traceability, traceability
Other characteristics
alert management, with surface sensor, battery-powered, with instant alarm, wireless, telemetry, with probe, with wireless data transmission
Temperature

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

Overview
The LoRa® SPY T4 long-range temperature sensor designed to monitor temperature in domestic hot water (DHW) pipes. It measures and records pipe temperature using an external PT100 surface probe. The device fixes to pipes with cable ties without damage and includes a reflector to eliminate external temperature influence. Connection to LoRaWAN enables secure encrypted transmission to the JRI MySirius cloud or to a client server. Real-time alerts notify of deviations from configured temperature thresholds.

Compliance
  • Meets regulatory requirements for legionella monitoring.
  • Complies with the decree of 1 February 2010 (healthcare establishments and public access buildings).

Connectivity and operation
  • Long-range LoRaWAN connectivity (operator network or private gateway).
  • Secure encrypted data transmission to cloud or client server; data accessible in real time via the MySirius application.
  • Ready-to-use with status and alarm LEDs and LCD display.
  • Touch-sensitive On/Off button; clear operation and alarm indicators.

Installation and use
  • Attaches to pipes with cable ties without damaging the pipe coating.
  • Built-in reflector reduces external temperature influence to ensure quality of internal measurements.
  • Integrated mounting eyelets and magnets for quick fixing.
  • Interchangeable battery for field replacement.

Benefits
  • Long-range LoRaWAN for wide coverage and remote monitoring.
  • Plug-and-play product with visible status and alarm indicators.
  • On-device LCD for immediate measurement readout.
  • High measurement accuracy for DHW monitoring using external PT100 surface probe.
  • Local indicators and simple interface for alarm acknowledgement and basic configuration.

Technical specifications
  • Model: LoRa® SPY T4
  • Dimensions: 87 x 63 x 24 mm
  • Weight: 100 g
  • Measurement range: -40°C to +85°C
  • Measurement accuracy: 15°C–25°C: ±1°C on a copper tube; 50°C–60°C: ±1°C on an HTA tube
  • Sensor: PT100 external surface probe
  • Memory: 10,000 time-stamped measurements
  • Radio range: Up to 16 km in free field (conditions dependent)
  • Frequency bands: 868 MHz or 915 MHz
  • Interface: Status and alarm LEDs, touch-sensitive On/Off button, LCD display
  • Power supply: Interchangeable 3.6V lithium battery
  • Battery life: 2 years (typical)
  • References: See table in the product datasheet
  • Compliance / Certifications: CE, ROHS, FCC, EN 300 200
