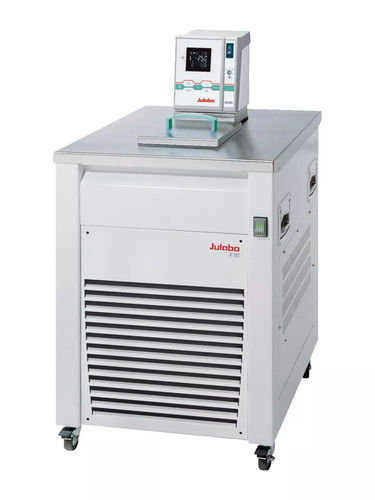

Cryostatic bath for the pharmaceutical industry F81-ME
ultra-low-temperaturecirculatorfloor-standing

cryostatic bath for the pharmaceutical industry
cryostatic bath for the pharmaceutical industry
Add to favorites
Compare this product


Characteristics

Applications
for the pharmaceutical industry
Temperature control
ultra-low-temperature, circulator
Configuration
floor-standing, compact
Other characteristics
stainless steel
Capacity

Max.: 6.5 l
(1.72 gal)

Min.: 5 l
(1.32 gal)

Heating capacity

1,200 W

Diameter

8 mm, 12 mm
(0.31 in, 0.47 in)

Temperature range

Max.: 100 °C
(212 °F)

Min.: -81 °C
(-113.8 °F)

Flow rate of the circuating pump

Max.: 16 l/min
(4.23 us gal/min)

Min.: 11 l/min
(2.91 us gal/min)

Weight

86 kg
(189.6 lb)

Height

88 cm
(34.6 in)

Length

58 cm
(22.8 in)

Width

50 cm
(19.7 in)

Description

The ultra-low refrigerated circulators of the TopTech series are equipped with a dual-stage cascade refrigeration system for continuous operation of internal and external temperature applications. Models with ME circulator: Heated bath cover plate to prevent condensation or ice build-up Pressure pump up to 0.45 bar, electronically adjustable in steps ACC Active Cooling Control across the entire temperature range Compact design Note: FP models feature an energy-saving proportional cooling control. Product Features: PID3 cascade temperature control RS232 interface for online communication Integrated programmer for 10 program steps Benefits: 100% Checked. 100% testing. 100% quality. Each JULABO Circulator undergoes thorough quality testing before leaving the factory. Green technology. Development consistently applied environmentally friendly materials and technologies. JULABO. Quality. Highest standards of quality for a long product life. Quick start. Individual JULABO consultation and comprehensive manuals at your disposal. Satisfied customers. 11 subsidiaries and more than 100 partners worldwide guarantee fast and qualified JULABO support. Services 24/7. Around the clock availability. You can find suitable accessories, data sheets, manuals, case studies, and more at www.julabo.com.
