with extremely powerful pumps, intuitive touchscreen displays

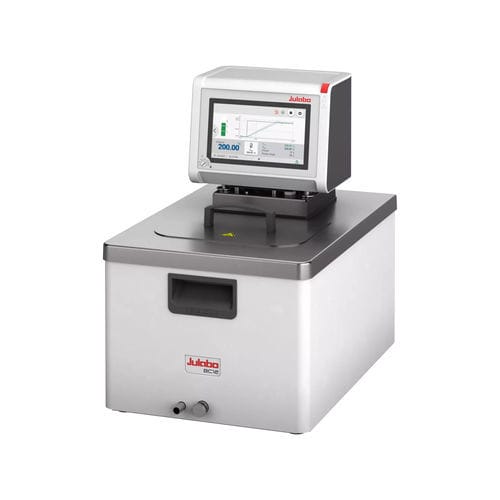

Like all circulators in the MAGIO range, the heating circulators are characterised by premium quality and high performance combined with intuitive usability. The devices offer extra powerful pressure and suction pumps to meet the most challenging demands for temperature control of external applications. Samples can also be temperature controlled in the internal bath of the high-quality, insulated and closed bath tank.
High resolution TFT touch display
The modern TFT touch display gives you all the important information at a glance. Three large, predefined main screens clearly display data and graphics with various application priorities. Menu navigation is self-explanatory, arranged by relevance to daily operations and easy to operate with the touch of a finger. The in-built help function provides detailed support in case of additional questions.
Product Features
Combined RS232/RS485 interface for serial data transmission according to the EIA-485 industry standard (2-wire bus technology), upgradeable with Profibus DP
USB connection
RS232 interface for online communication
Integrated programmer
Integrated external Pt100 connection
analog interfaces (accessory)
Ideal for demanding external applications
Simple control of complex applications
Flow rate 16 ... 31 l / min, pressure 0.24 ... 0.92 bar, suction 0.03 ... 0.4 bar
Continuously adjustable, extremely powerful pressure / suction pump
Strong heating capacity of 3 kW (MX-Z) and 2 kW (MS-Z)
High-quality thermal insulation of the bath tanks
