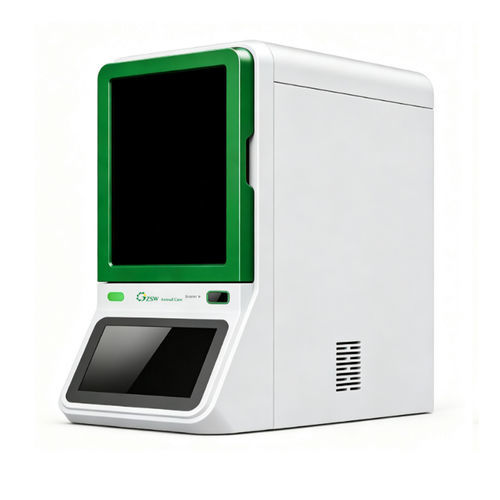

POC nucleic acid analyzer JZ-PCR100

automatedpoint-of-careveterinary

Overview
JZ-PCR100 is a point-of-care testing (POCT) solution for molecular diagnostics in pet hospitals and veterinary clinics. The analyzer integrates magnetic bead–based nucleic acid extraction with quantitative fluorescence PCR (qPCR) in a closed, automated workflow. Prefilled extraction cartridges and lyophilized PCR reagents enable ambient transportation and storage. With a fully automated process from sample to result in as fast as 38 minutes and minimal hands-on time, JZ-PCR100 reduces turnaround and supports on-site decision making.

Benefits and key features

• Fast and intelligent: Prefilled cartridge with extraction reagents and magnetic beads; no manual reagent preparation; hands-on time reduced to under one minute—load samples, start, and wait for results.
• Compact and integrated: Small instrument footprint of approximately 0.04 m3 for constrained laboratory or clinic spaces.
• Comprehensive test menu: Support for over 40 multiplex and singleplex assays for cats and dogs.
• Containment and contamination control: Internal control in each cartridge to verify sampling; sample and reagents mixed by a rotating magnet sleeve and sealed with mineral oil; amplification in airtight tubes; contamination reduction via alcohol‑free chemistry, UV irradiation, membrane filtration and aerosol-eliminating spray.

Technical specifications

• Model: JZ-PCR100
• Application: POCT molecular diagnostics for pet hospitals and veterinary clinics (cats and dogs)
• Workflow: Fully automated magnetic bead–based nucleic acid extraction + qPCR (quantitative fluorescence PCR)
• Cartridge: Prefilled with extraction reagents and magnetic beads; includes internal control
• PCR reagents: Lyophilized PCR mix enabling ambient transport and storage
• Sample-to-result time: As quick as 38 minutes
• Hands-on time: Reduced to not more than 1 minute
• Containment: Closed-system extraction, washing and amplification; amplification in airtight tube sealed with mineral oil
• Contamination control: Alcohol-free formula, UV irradiation, membrane filtration, aerosol-eliminating spray
• Mixing mechanism: Rotating magnet sleeve
• Footprint: Approximately 0.04 m3 (compact integrated instrument)
• Test menu: >40 multiplex and singleplex assays for veterinary use (cats and dogs)
• Intended use: POCT deployment in veterinary clinics and pet hospitals
