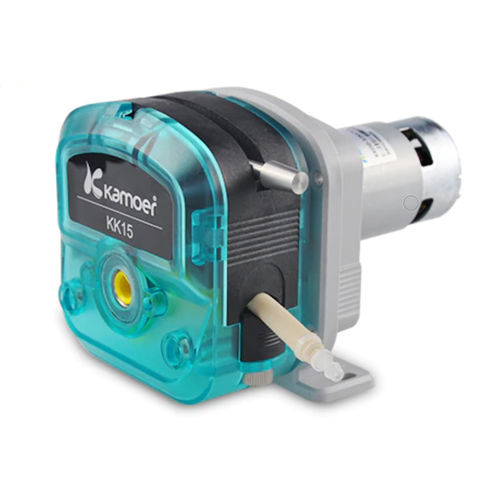

Laboratory peristaltic pump KKDD

Multi-stage gear transmission, accurate and reliable The reduction ration is 1:20 KK peristaltic pump module series Suitable for viscous, non-viscous liquid transport Quick replacement of pump tube A variety of pump tube materials are available Gear transmission, high reliability Multiple motor options Meet different power needs Environment temperature range: 0-40°C; Ambient humidity range: <80% Pump tube length : 150mm Quiet room ambient noise under 35dB conditions: KKDD: 50 cm away,69dB; 0 cm away, 74dB. KKTS: 50 cm away,59db; 0 cm away,68db. The two pipelines are equivalent to two synchronously rotating pumps, one drive can simultaneously complete two independent liquid transmissions; if the two inlets and outlets are respectively connected by Y-type joints, the two pumps are merged and the rotors are interlaced. With smooth pulsation and higher precision, pay attention to the need for more torque for the double head. The stepping motor needs to sacrifice the speed or the thick tube type properly. The DC motor torque is sufficient, but the current will rise compared to the single head. The double head size only adds a pump head to the single head, which is 54mm longer than the single head.
