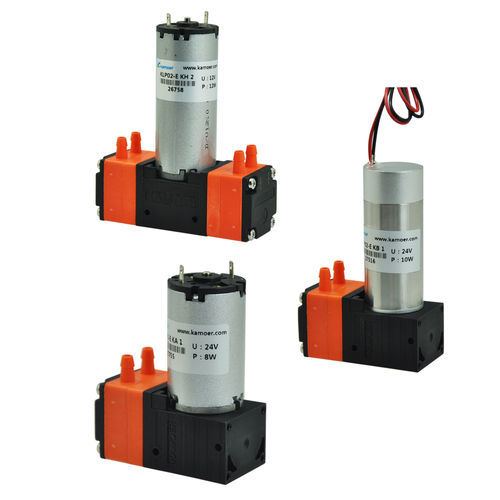

Laboratory vacuum pump KLP02
pistondiaphragmoscillating

laboratory vacuum pump
laboratory vacuum pump
laboratory vacuum pump
laboratory vacuum pump
laboratory vacuum pump
laboratory vacuum pump
laboratory vacuum pump
Add to favorites
Compare this product


Characteristics

Applications
laboratory
Technology
piston, diaphragm, oscillating
Options
dry
Flow

0.7 l/min, 0.8 l/min, 1.4 l/min, 1.6 l/min
(0.18 us gal/min, 0.21 us gal/min, 0.37 us gal/min, 0.42 us gal/min)

Pressure

3 bar
(43.51 psi)

Weight

212 g, 250 g, 336 g
(7.5 oz, 8.8 oz, 11.9 oz)

Description

KLP02 micro diaphragm pump is designed according to the principle of volume pump. It controls the diaphragm inlet and outlet.A power driven rear drive mechanism is formed to drive the piston KLP02 micro diaphragm liquid pumps are based on a simple principal of the oscillating displacementpump which is remarkably simpale in design. The circular power from the motors is converted into vertical movement by an eccentric. This motion is then transferred to a diaphragm by means of a connecting rod which in conjunction with an inlet and outlet valve creates a pumping action. KLP02 type liquid pumps can be mounted in anyposition and can deliver up to 0.8-1.5L/min depending on the model and will operate against pressure to 3 bar. -Self priming -Low power consumption -Long lifetime -Small size -Dry running -Low sound level -Compact design -Corrosive liquid available Environment temperature range 0-40°C (0 to 104°F) (Note: Freezing must be prevented) Ambient humidity range <80% RH Certifications & Approvals 1509001, CE, RoHS
