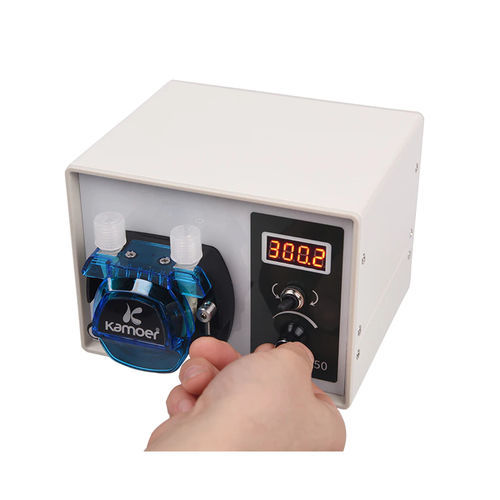

Laboratory peristaltic pump DIP

★ Automatic circulation ★ Semi-automatic cycle ★ Manual start/stop ★ Positive/Reverse ★ Speed control ★ Parameter memory Voltage: 24V Power: Less than 50W Current: 2A max Pump tube: Siiicone/BPT Multi-machine Interconnection: Max 15 pieces pumps connection Power supply: External power adapter Working temperature: -20~60℃ Body size: 150*162*117(L*W*H,including pump head) Range of rotation: 0.1rpm-400rpm Speed adjustment resolution: 0.1rpm Control method: Encoder, toggle switch, external analog signal control, RS485 communication control, foot switch control External analog signal control: 4-20mA, 0-5V Display mode: LED 4-digit digital tube, Speed display, duration display Working mode: Fully automatic cycle, semi-automatic cycle, manual Support function: Start and stop, forward and reverse, speed adjustment, etc. 1. Automativ circulation 2. Semi-automatic cycle 3. Manual start/stop 4. Positive/Reverse 5. Speed control 6. Parameter memory # Canned liquid # Laboratory # Food industry # Medical equipment ▲ Automatic circulation ▲ Digital display panel (first) ▲ Speed button (second) ▲ Reversing switch (third) ▲ The external uses RS485 communication protocol, the transmission rate is faster than RS232, the communication distance is father. ▲ Left is Power socket; Right is Combination control port No 1: reserved No 2: 485 B No 3: 485 A No 4: Foot switch + No 5: Foot switch - No 6: Analog signal 5V- No 7: Analog signal 5V+ No 8: Analog signal mA- No 9: Analog signal mA+ ▲ Combination control port 1. 485 communication (2, 3 feet) 2. External start and stop control (4, 5 feet)
