Main technical parameters
Dimension of bed:1700mm±20mm×560mm±15mm
Height of bed:lowest 540mm±15mm,
highest 830mm±15mm (exclude the cushion)
Back section turning angle:25°~80°
Seat section turning angle:0°~25°
Arm board declining angle adjustment:-15°~10°
Leg section turning angle:-30°~-90°
Arm board swing out:0°~45°
Arm board height adjustment:100mm
Arm board slide:100mm
Loading:160kg
Net weight:130kg
List of accessory
1.Wire 1 piece
2.Hand control 1 piece
3.Adjust spanner 1 piece

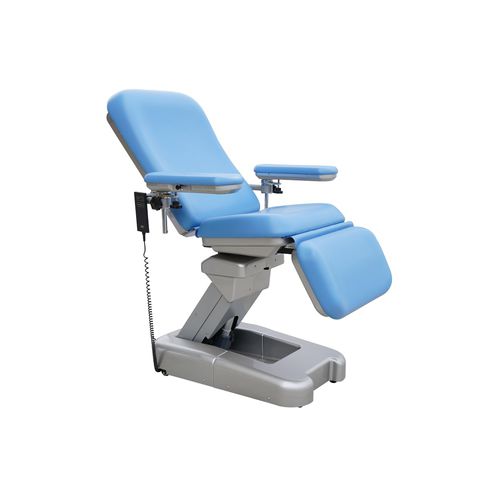

This blood donor chair mainly base, chair body ( back section, seat section, leg section, foot rest), arm board and hand control etc.Arm rest turning and up and down move.Arm rest has slide function, pull out slipping function pin, move the arm board forward and backward to a proper position. Then release the slipping pin, the arm board can be locked.Arm rest can be adjusted vertically and level angle of arm board also can be adjusted.
