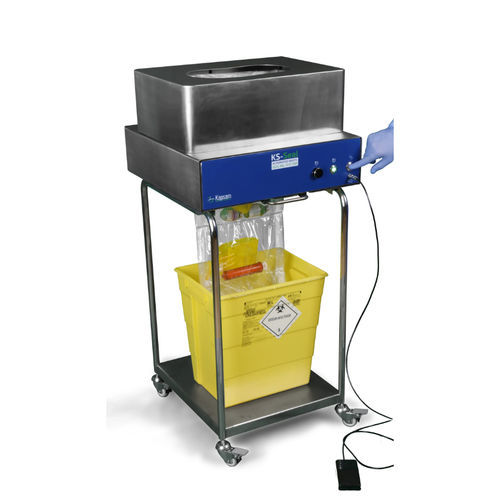

Laboratory sealer KS-Seal

for the pharmaceutical industrymedicalautomated

Overview
KS-Seal is an automated waste sealing system designed to provide airtight protection for infectious and hazardous healthcare waste. The system enables secure disposal, prevents the spread of odors and aerosols, and offers a closed-system solution suitable for handling pathological, infectious and cytotoxic wastes in clinical environments.

Application Fields

• Pharmacies and compounding units
• Laboratories
• Oncology wards
• Dialysis clinics and blood donor centres
• Infectious diseases clinics
• Homecare units
• Pre-schools and retirement homes

Key Benefits

• Hermetic sealing to prevent odor and contamination spread
• Safe interim storage for infectious and cytotoxic waste
• Rapid sealing process for contamination avoidance (typical: 4 seconds per closure, 40 seconds per cycle)
• Closed-system solution that mitigates risk and supports guideline-compliant waste management

Features and Versatility

• Adjustable bag length for convenience
• Generous foil length (typical cassette: 40 m, enabling up to ~400 seals per cassette)
• Compatible with other brands' foil systems (example brands cited: Berner, Paxxo)
• Environmentally friendly PE material options for consumables
• Transparent, yellow and red foil colour options
• Sterile and non-sterile packaging options for foil cassettes
• Auto foil cutting system
• LED light indicator for ready / under-operation status
• Adjustable device height and easy-to-clean, load/unload components
• Battery option available for mobility and a foot-pedal option to avoid contamination
• Integratable into existing cabinet workbenches and Kapsam cabinet automation (monitoring foil length, alerts before foil depletion)
• Energy-saver sealing mode available

Functional Foil Cassette

• Material: PE tubing
• Thickness: approx. 25 μm
• Width: 55 cm
• Length options per cassette: 25 m and 40 m
• Colour options: Transparent, yellow, red
• Generous foil length (40 m cassette supplies up to ~400 seals)

Integration & Workflow
KS-Seal integrates with cabinet workspaces and compounding systems to enable convenient, monitored waste disposal within the safe workspace. Integration supports automated monitoring (e.g., foil length tracking and depletion alerts) to ensure uninterrupted operations.

Specifications / Technical data

• Weight: 45 kg (approx.)
• Dimensions (W x D x H): 52 x 48 x (96-120) cm
• Rated voltage: 220 VAC - 50/60 Hz
• Rated current: 1.1 A
• Power consumption (operation / standby): 180 W / 5 W
• Battery: 12V, max. dimensions: 150 x 65 x 95 mm
• Casing material / finish: Electrostatic paint
• Consumables (foil cassette): PE tubing, thickness approx. 25 μm, width 55 cm, length options 25 m and 40 m
• Colour options for foil: Transparent, yellow, red
• Sealing performance: rapid sealing — typical closure ~4 seconds; typical cycle ~40 seconds
• Foil cassette capacity example: 40 m cassette → up to ~400 seals (typical)
