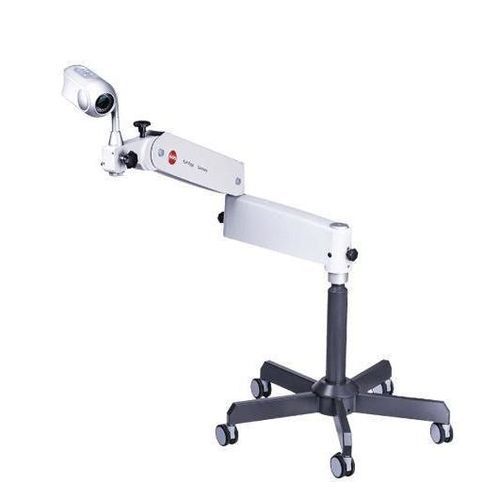

Video colposcope ViCo S HD

digital

Overview
The Full HD video colposcope designed for clinical documentation and routine examinations. Integrated Full-HD imaging system with real-time autofocus and manual override, suitable for gynecological examination workflows and video documentation.

Key Selling Points

• Full HD imaging (1920 x 1080)
• Autofocus with manual override
• Integrated video documentation with freeze-frame capability

Imaging & Video

• Image resolution: 1920 x 1080 pixels (Full HD)
• Image format: 16:9
• Video standard: up to 1080p/60 (60 fps)
• Still image function (freeze current image for documentation)
• Video outputs: DVI / HDMI for external recording or display

Magnification & Zoom

• Optical zoom: 10x (lossless)
• Digital zoom: 6x
• Combined magnification: up to 120x

Lighting & Filters

• Super-bright LED ring, colour temperature 5800 K (daylight quality)
• Uniform, shadow-free illumination optimised for mucosal inspection
• LED lifespan: approx. 50,000 hours
• Low heat generation and low power consumption
• Electronic green filter (activated electronically to enhance vascular structures)

Focusing & Working Distance

• Intelligent autofocus with real-time operation (no perceptible delay)
• Manual focus override via dedicated button
• Working distance: 250 - 350 mm (adjustable for typical examination setups)

Other Features

• Mains connection: 90-240 V AC, 50/60 Hz
• Designed as an integrated Full-HD system (no external camera retrofit required)

Technical specifications

• Image Resolution: 1920 x 1080 pixels (Full HD)
• Image Format: 16:9
• Video Standard: up to 1080p/60
• Video Outputs: DVI / HDMI
• Magnification: up to 120x (optical 10x, digital 6x)
• Working Distance: 250-350 mm
• Lighting: Super-bright LED ring, 5800 K
• Filter: Electronic green filter
• Focusing: automatic or manual
• Mains Connection: 90-240 V AC, 50/60 Hz
• Weight: approx. 45 kg
