Medical software LabWatch® IoT

analysisreportingmonitoring

Description

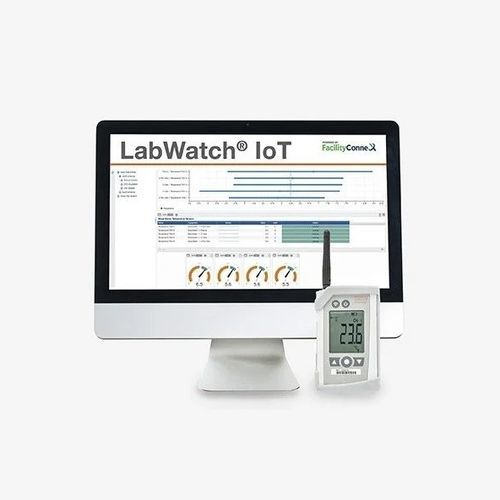

LabWatch® IoT is a cloud-native facility and environment monitoring platform that provides real-time visibility and control of critical stability, environmental and facility parameters. Secure site-to-cloud connections (VPN and encrypted storage) continuously collect sensor data, detect alarm conditions, and route alerts to designated personnel to replace paper logs and manual retrieval.

Overview
The platform delivers current alarm status, historical readings and trend analytics through a responsive web dashboard and mobile access. Users sign in with corporate credentials and optional multi-factor authentication (MFA). Built-in reporting produces audit-ready records automatically or on demand to support investigations and inspections.

Integration & hardware
LabWatch IoT integrates with Kaye NetPac II wired field modules and Kaye ValProbe® RM wireless loggers. ValProbe RM supports multiple sensors per base; NetPac II aggregates numerous inputs for larger installations. Devices transmit primary environmental parameters (temperature, humidity, etc.) securely to the LabWatch Cloud for centralized analysis and long-term storage.

Features

• Cloud-native monitoring with secure site-to-cloud VPN and encrypted storage
• Real-time alarm detection and intelligent routing (mobile app, email, SMS, audio)
• Responsive dashboard accessible from web browsers and mobile devices
• MFA and role-based access for enterprise security
• Built-in reporting and audit trails for regulatory compliance
• Scalable from small deployments to multi-site global systems
• Supports wired, wireless and hybrid architectures

Key features & benefits

• Supports FDA 21 CFR Part 11 for electronic records and signatures
• Creates an audit trail of alarms and operator actions
• Centralized history of alarms and measurement data
• Reduces nuisance alarms with configurable logic
• Unlimited concurrent users and multiple notification methods
• Secure AWS GxP storage to prevent tampering
• Browser-based access; no specific OS required

Wired/Wireless distributed measurement hardware

• Redundant data storage across loggers, base stations and NetPac II
• Remote access via standard web browsers
• Alarm notification via mobile app, email and SMS
• Reporting and professional services: spec development, installation, IQ/OQ, training, calibration, technical support

Typical applications

• Warehouses and clean rooms
• Blood banks and biobanking
• Pharmacies and compounding
• Cold storage and distribution
• Animal rooms and vivaria
• Laboratories and stability testing

Typical assets

• Stability chambers
• Freezers and refrigerators
• Incubators
• Cryogenic freezers and LN2 tanks
• Ovens and environmental chambers

Typical sensor inputs

• Temperature – RTDs, thermocouples
• Humidity
• CO2
• Pressure – absolute and differential
• Contacts – door switches, relays
• Voltage/current inputs
• Light – visible and UV
• Air flow

General specifications (summary)
Web access: Any supported browser, any OS; unlimited concurrent users. Mobile app for login, alarm acknowledgement and data review.
Security: Single Sign-On with optional MFA; encrypted storage (AWS GxP).
Connectivity: VPN site-to-cloud; interfaces with OPC-based hardware, Kaye NetPac II and RF mesh sensors.

NetPac II wired field modules (summary)
Inputs: Voltages ±55mV/±100mV/±1V/±10V; currents 0–1mA, 4–20mA, 10–50mA; thermocouples J,K,T,R,S,E,B (CJC and linearization); RTD Pt-100, Cu-10; dry contacts.
Capacity: 8 to 64 inputs in 8-input increments; NEMA 4 enclosure.
Outputs: Contact out 2A @26 VDC, 1A @120 VAC; analog out 0–10V, 0–5V, 4–20mA, 1–5mA.
Environment: 0–60°C; 0–95% RH non-condensing.
Power: 24 VDC, 115VAC, 230VAC; consumption approx. 11W max.

Sensors (summary)
Thermocouples (J,K,T): example type T spec – stranded 22 AWG; accuracy ±0.1°C at 40°C, ±0.25°C at 121°C.
Humidity: 1% or 2% accuracy options; output 4–20mA; power 24 VDC; temperature range -10 to 78°C; temp accuracy ±0.3°C.
Other sensors: Light (visible & UV), pressure, flow, CO2, door switches, voltage/current inputs.

ValProbe RM general specs (summary)
Measurement inputs: Temperature, RH, voltage, current, contact. RF: 2.4 GHz ISM (IEEE 802.15.4), AES-128. RF range: up to 300 m LOS. Loggers & sensors: up to 50 loggers, 100 sensors per base station. Data storage: up to 100,000 samples per sensor. Sampling: 1 minute; transmission typically 30 seconds. Certified markets: USA, Canada, EU. Compliance: CE, FCC, FDA 21 CFR Part 11 support.
