Medical software WebCRT 1.0

managementreportingmerging

Overview
Kaye Common Reporting Tool (CRT) and WebCRT provide validation-grade report generation from Kaye Validator AVS and ValProbe RT study files. CRT 1.8 is a Windows desktop application for offline report creation; WebCRT 1.0 is a centralized browser-based platform hosted on the Kaye Data Center (KDC) for multi-user and server-based reporting.

Common Reporting Tool (CRT) 1.8 — Desktop reporting for Windows
CRT 1.8 is a downloadable Windows application that creates qualification and equipment reports from encrypted Validator AVS and ValProbe RT study files. Files can be transferred from Kaye consoles or network shares for offline processing. Reports can be exported to spreadsheet (.xlsx) for signature and archival. A 30-day free trial of the desktop application is available.

WebCRT 1.0 — Centralized browser-based reporting
WebCRT 1.0 provides CRT functionality in a secure web environment hosted on the KDC server. It consolidates AVS and VRT data, enables centralized deployment and version control, and supports multi-user access without local installation.

Security and usability
All CRT study files use an encrypted, CRT-only, tamper-proof format accessible only via CRT software. The system supports Microsoft Active Directory for user and permission management and follows Kaye’s asset-centric interface conventions for consistent workflows across desktop and web.

Quick facts

• Single reporting tool for Validator AVS, ValProbe RT, and equipment reports
• Supports database-enabled ValProbe RT and Validator AVS
• Integration option with Kaye Data Center (KDC) for centralized data access
• Encrypted, tamper-proof CRT file format with Active Directory support
• Base license available for additional PCs and a 30-day trial
• Advanced plug-in for custom report templates

Features (selected)

• Integration with Kaye Data Center (KDC) for enterprise-wide reporting
• Calibration and verification report export
• Unified access to study files and merged AVS + VRT reports
• Merge up to three studies into a single report
• IEC 60068 and AFNOR FD X15‑140 compliant reporting modes
• Freeze dryer report generation and detailed pass/fail reporting

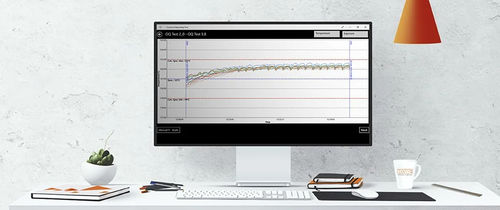

• High-performance graphing (>100,000 samples)
• Export raw data to .xlsx and remote report generation
• Microsoft Active Directory integration

Available reports

• Setup Report
• Raw Data Export (.xlsx) with CRT 1.8
• Merging of up to three Validator AVS or ValProbe RT studies into one report (WebCRT)
• Detailed and Summary Qualification Reports
• Graph Reports
• Interval Calculations Report (AVS only)
• Pass & Fail Report
• Climatic Chamber Report (AFNOR X15-140 / IEC 60068)
• Spreadsheet Report (.xlsx)
• Audit Trail Report (if audit trail data is imported)

Qualification reporting capabilities

• Mark cycles and events
• Edit groups and calculation parameters (changes affect report only)
• Exclude sensors from the report
• Export qualification data to Excel for further analysis

Technical specifications

• CRT desktop: Windows application (CRT 1.8); PC regional settings recommended as English (US) with English (US) keyboard
• CRT installation: Windows setting to allow installing apps from any source (including loose files) may be required
• WebCRT: browser-based (WebCRT 1.0) hosted on KDC; requires supported web browser, network access to KDC and appropriate access permissions (Active Directory where applicable)
• Supports merging up to 3 studies into one report and high-performance graphing (>100,000 samples)
• IEC 60068 and AFNOR FD X15‑140 compliant reporting
• Encrypted, tamper-proof CRT-only file format and Active Directory integration
• Export to .xlsx for signatures and archival; plugin support for custom templates
