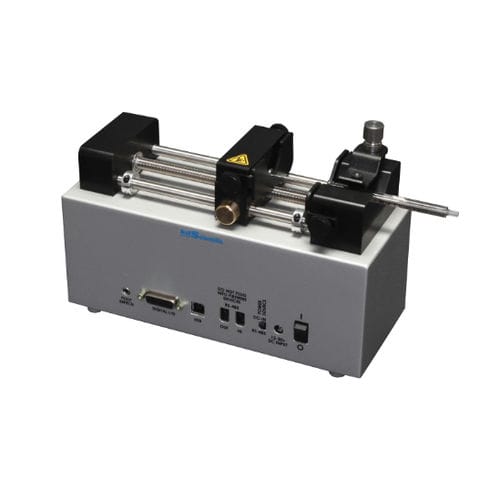

1-channel syringe pump LEGATO® 950 OEM
continuousprogrammable

1-channel syringe pump
1-channel syringe pump
Add to favorites
Compare this product


Characteristics

Number of channels
1-channel
Operational mode
continuous
Other characteristics
programmable
Syringe volume

Max.: 15 ml
(0.50721 US fl oz)

Min.: 10 ml
(0.33814 US fl oz)

Length

22.6 cm
(8.9 in)

Width

19.05 cm
(7.5 in)

Height

15 cm
(5.91 in)

Weight

2.7 kg
(6 lb)

Description

Based on the Legato® 100 series syringe pump design, the Legato® 950 is ideal for applications interfacing to a computer. Accommodates syringes 0.5 μl to 60 ml. User definable flow rates with selectable target volume or time values to control the total infusion volume. • ± 0.5% Accuracy • 0.5 μl to 60 ml syringes • Continuous mode of operation • Programmable with ASCII commands • Encoder stall detection • USB Interface • TTL Interface • Customizable syringe mechanisms available • Customizable chassis designs available • Advanced micostepping techniques • Linear force 30 lbs (13.6 kg) • CE, CB Scheme, EU RoHS compliant
