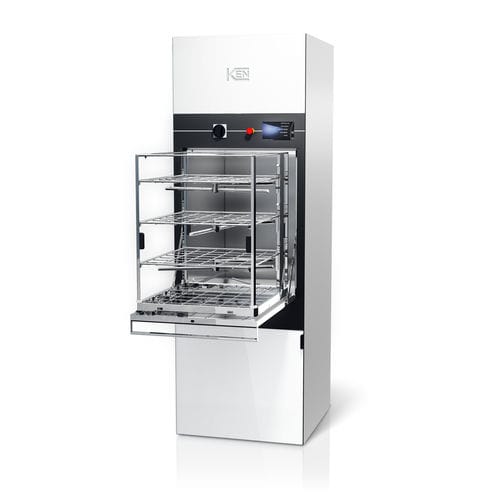

Dental washer-disinfector IQ5M
for surgical instrumentsfor anesthesia equipmentveterinary

Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary
Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary
Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary - image - 2
Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary - image - 3
Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary - image - 4
Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary - image - 5
Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary - image - 6
Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary - image - 7
Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary - image - 8
Dental washer-disinfector - IQ5M - KEN Hygiene Systems - for surgical instruments / for anesthesia equipment / veterinary - image - 9
Add to favorites
Compare this product


Characteristics

Applications
for surgical instruments, bottle, for anesthesia equipment, reprocessing, dental, veterinary
Configuration
floor-standing, compact
Operational mode
high-capacity, low-consumption, intelligent
Loading
front-loading
Options
with manual closure
Capacity

279 l
(73.7 gal)

Power

Min.: 7 kW

Max.: 13 kW

Time per cycle

Min.: 35 min

Max.: 45 min

Weight

303 kg
(668 lb)

Height

1,985 mm
(78.1 in)

Width

662 mm
(26.1 in)

Depth

712 mm
(28 in)

Description

Proven performance, reliability and space-saving design for CSSDs. The washer-disinfectors IQ5 are specially designed for use in CSSDs, surgical wards, intensive care and other departments, as well as healthcare facilities where decontamination of materials are required. Side by side installation and compact efficiency reduces the space needed and increases productivity in a smaller space. Double door models ensure an effective barrier between the unclean side and the clean side, optimizing the required level of hygiene and reducing the risk of hospital infections as well as keeping a safe working environment for the staff. The low-consumption washer-disinfector IQ5m is available as a manual drop down version with one or two doors. The IQ5 has a low energy, detergent and water consumption, which keep operating costs at a minimum and contribute to a clean environment, which makes the IQ5 a superior washer-disinfector. Advantages • - Low water, chemical and energy consumption • - Low noise level < 55 dBA • - 7-inch multi-touch screen • - Ergonomic working height of 750 mm for maximum comfort • - 10 standard programs and an additional 30 optional programs • - Graphical process diagram • - Electrical or steam drying • - Water supply connections 2 + 1 • - Chemical dosing units 2 + 2 • - Validated cycle time: 35-45 minuts • - Water consumption: 12 to 15 L per phase • - Holds up to 12 DIN (480 x 250 x 50 mm) or 5 SPRI (450 x 340 x 70 mm) • - Complies with standards, such as EN ISO 13485, EN 61010-2-040 and EN ISO 15883-1-2-5-6
