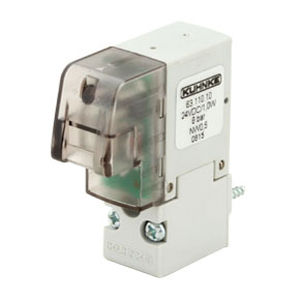

Medical solenoid valve 63.110.10

manual

10 mm width, three different electrical connection possibilities. Optionally with manual override operation. Function - 3/2-way NC Pressure range - 0 - 8 bar Nominal orifice - 0.5 mm Type of pneumatic connection - Flange Kv-value - 0.11 l/min Size - 10 mm Actuation type - electrically actuated Duty cycle - 100 % ED Type of electric connection - Plug with diode Medium - Filtered (5 µm), lubricated and non lubricated air Nominal power - 1 W Nominal voltage - 24 V DC Nominal current - 153 mA Returning mechanism - Spring Protection class - IP65 Ambient temperature - -10 ... +50 °C Valve type - Poppet valve Materials - Base: PBT, seal: NBR Actuation - directly controlled
