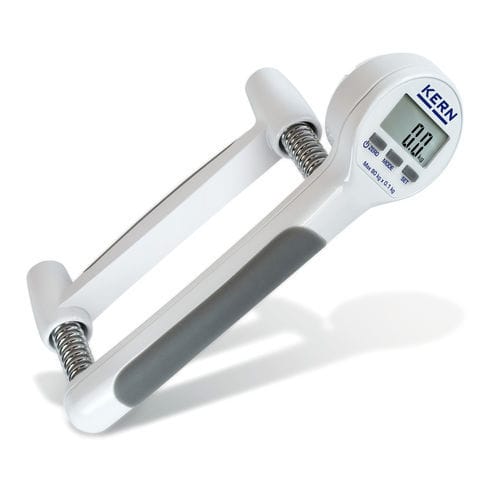

Digital dynamometer MAP 80K1

80 kg

Product overview

• Hand grip dynamometer for objective measurement of grip/clamping force in clinical and rehabilitation environments.
• Non-slip rubber grips for safe and comfortable handling.
• Integrated AUTO-OFF function after 1 minute to preserve batteries.
• Units selectable between kg and lb.
• Exchangeable spring sets included to change capacity and rigidity quickly, enabling use with different patient groups (children, elderly, sports medicine).
• Supplied with a stable transport/storage case (W×D×H 350×265×85 mm).

Measuring methods

• Real time mode: displays the client's current strength immediately.
• Peak/Max mode: records the maximum grip force.
• Average mode: calculates the average strength from two grips.
• Counting mode: counts the number of presses exceeding a preset force limit.

Applications

• Rehabilitation centres
• Physiotherapists and occupational therapists
• Outpatient clinics
• Retirement and nursing homes

Technical data
Weighing capacity [Max]: 80 kg
Readability [d]: 100 g
Units: kg, lb
Net weight approx.: 0.35 kg
Product family: MAP

Associated services

• Factory calibration certificate: item 961-102K

Features / technical specifications

• Maximum capacity: 80 kg
• Readability / scale division: 100 g
• Units selectable: kg and lb
• Net weight approx.: 0.35 kg
• Product family: MAP
• Four measurement modes: Real time, Peak/Max, Average, Counting
• Non-slip rubber grips
• AUTO-OFF after 1 minute
• Exchangeable spring sets included (allow switching capacity/rigidity)
• Supplied with stable transport/storage case (W×D×H 350×265×85 mm)
