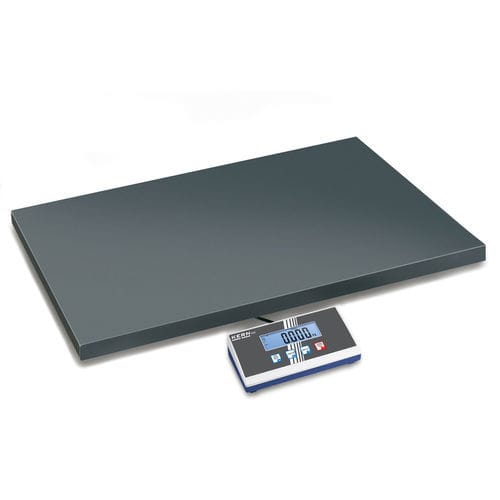

Digital platform scale EOE 300K100XL

electronicfor animalsveterinary

Product overview
Parcel scale with a large platform for fast and easy weighing in the office, production, dispatch and similar environments. Battery operation and compact design enable use across multiple locations.

Key features

• High mobility: battery operation, compact and lightweight construction suitable for use in several locations
• Wall mount for display device (standard)
• Hold function: when weighing conditions are unstable, a stable weight is calculated as an average value

Main fields of application

• As Parcel Scale: warehouse logistics, production, industrial applications
• As Veterinary Scale: animal weighing

Technical data (summary)
Weighing capacity [Max]: 300 kg
Readability [d]: 0,1 kg
Units: kg, lb, PCS
Dimensions weighing platform (W×D×H): 950×500×58 mm
Dimensions weighing surface (W×D): 950×500 mm
Reproducibility: 0,1 kg
Linearity: ± 0,2 kg
Ambient temperature: 5 °C – 35 °C
Display type: LCD
Display digit height: 25 mm
Material weighing plate: steel, lacquered
Display device cable length: 2 m
Material housing: plastic
Net weight approx.: 18 kg
IP protection - complete device: -
IP protection - display: no IP protection
IP protection - platform: no IP protection
IP protection - load cell: no IP protection
Construction type of the scale: Single-range balance
GTIN/EAN number: 4045761192614

Accessories (examples)

• Power adapter YKA-16 (9 V, 100 mA | 100 V - 240 V | EURO, AUS, UK, US, CH)
• Protective working cover EOB-A04B (and variants)
• Rubber mat EOE-A01
• Tripod EOB-A02B (height approx. 1000 mm)
• Wall mount for display device EOC-A04

Technical specifications

• Weighing capacity (Max): 300 kg
• Readability: 0,1 kg
• Units: kg, lb, PCS
• Platform dimensions (W×D×H): 950×500×58 mm
• Weighing surface (W×D): 950×500 mm
• Reproducibility: 0,1 kg
• Linearity: ± 0,2 kg
• Operating temperature: 5 °C – 35 °C
• Display: LCD, digit height 25 mm
• Material weighing plate: steel, lacquered
• Display device cable length: 2 m
• Material housing: plastic
• Net weight approx.: 18 kg
• IP protection (display / platform / load cell): no IP protection
• Construction type: Single-range balance
• GTIN / EAN: 4045761192614
