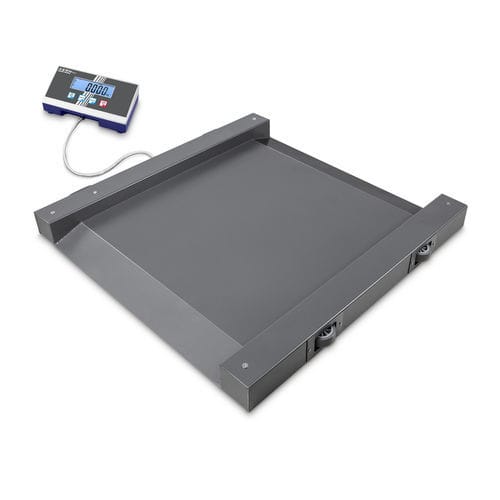

Electronic platform scale NIB 300K-1

digitalwith LCD display

Description
Compact, mobile drive-through scale designed for in-line weighing of trolleys and containers during production or warehouse operations. Low platform height and integrated ramps allow fast, safe access for a variety of transport equipment.

Features

• Enables accurate weighing without unloading: suitable for wire-cage trolleys, shelf trolleys, container trolleys, platform trolleys, sack trucks, pallet trucks, mobile containers and refuse containers
• Low-profile platform with access ramps on both sides
• Weighing bridge: steel, powder-coated
• 4 silicone-coated aluminium load cells, protected to IP67
• Bubble level for precise levelling (standard)
• Transport-friendly: carrying handle and industrial rollers for easy movement and compact storage
• Wall mount for display included as standard (models without column)
• Protective work cover supplied

Applications

• Warehousing
• Warehouse logistics
• Order picking
• Industrial weighing tasks

Technical Data
Weighing capacity [Max]: 300 kg
Readability [d]: 0.1 kg
Units: kg, lb
Dimensions weighing platform (W×D×H): 1000×1000×40 mm
Dimensions weighing surface (W×D): 800×800 mm
Reproducibility: 0.1 kg
Linearity: ±0.3 kg
Operating temperature: -10 °C – 40 °C
Display type: LCD
Display digit height: 25 mm
Weighing plate material: steel, powder-coated
Platform material: steel, powder-coated
Display cable length: 5 m
Net weight approx.: 40 kg
IP protection - platform: IP67
IP protection - load cell: IP67
Construction type: single-range balance
GTIN/EAN: 4045761244214

Characteristics / Technical specifications

• Model: NIB 300K-1
• Maximum capacity: 300 kg
• Readability: 0.1 kg
• Switchable units: kg, lb
• Platform (W×D×H): 1000 × 1000 × 40 mm
• Weighing surface (W×D): 800 × 800 mm
• Reproducibility: 0.1 kg
• Linearity: ±0.3 kg
• Operating temperature range: -10 °C – 40 °C
• Display: LCD, digit height 25 mm
• Material: steel, powder-coated (plate and platform)
• Load cells: 4 silicone-coated aluminium cells (IP67)
• Cable length (indicator): 5 m
• Net weight: approx. 40 kg
• Included accessories: rollers, handle, bubble level, wall mount for display (for models without column), protective cover
• GTIN / EAN: 4045761244214
