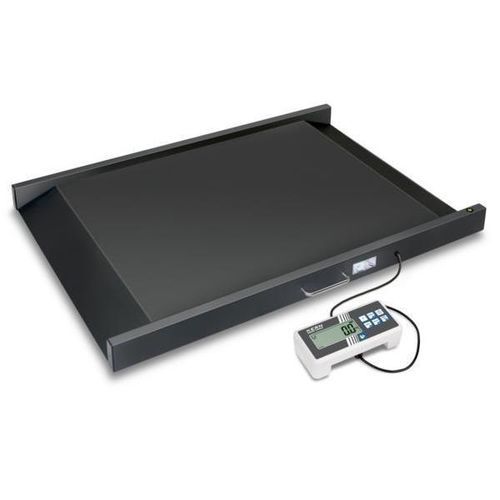

Electronic platform scale MWN 400K-1M

digitalfor wheelchairsfor hospitals

Short description
Robust integratable wheelchair platform scale for wireless transfer of weighing data to EMR or EHR systems. Product family: MWN.

Features

• Verification class III (verification optional)
• Approved as a medical device according to regulation (EU) 2017/745 (MDR)
• Integrated WiFi interface for wireless transfer of weights directly into digital patient records (EMR/EHR)
• KERN Universal Port (KUP): allows connection of external KUP interface adapters (RS-232, USB, Bluetooth, WiFi, Ethernet) for data and control command exchange without installation outlay
• Low-profile platform, accessible from either side — especially suitable for weighing patients in wheelchairs
• Large steel weighing plate, suitable for weighing obese patients
• Secure, non-slip positioning with height-adjustable rubber feet
• Level indicator for precise levelling of the balance
• Hold function: calculates a mean average weight value for patients who cannot stand still
• BMI function to determine underweight / normal weight / overweight
• Display device with two magnets on the back for fixing to metallic surfaces
• Transportable via handle and two rollers; compact for storage
• Wall mount for display device (standard)
• Battery- or mains-powered; rechargeable battery operation optional

Applications

• Inpatient facilities
• Outpatient clinics
• Dialysis centres
• Retirement and nursing homes
• Rehabilitation facilities
• Facilities for people with disabilities

Technical data (summary)
Weighing capacity [Max]: 300 kg; 400 kg
Readability [d]: 0,1 kg; 0,2 kg
Units: kg
Interfaces: RS-232 (optional), Bluetooth (optional), WiFi, Alibi memory (optional, factory), USB-Device (optional), KUP
Dimensions weighing platform (W×D×H): 995×999×70 mm
Supplied power supply: Power supply & battery function (battery not included)
Battery operating time: 20 h
Display device cable length: 1,8 m
Net weight: 42,2 kg
Conformity assessment possible ex works: yes
Approval in accordance with 2017/745 (MDR, med.): yes
Construction type of the scale: Multi-division balance
GTIN/EAN number: 4045761494060

Technical specifications

• Model: MWN 400K-1M
• Product family: MWN (IoT-Line)
• Type of scale: Multi-division balance
• Weighing capacity (Max): 300 kg; 400 kg
• Readability: 0,1 kg; 0,2 kg
• Units: kg
• Interfaces available: WiFi (integrated), RS-232, Bluetooth, USB-Device, KUP
• Alibi memory: factory option
• Platform dimensions (W×D×H): 995×999×70 mm
• Power: AC adapter supplied; battery function (battery not included); rechargeable battery optional
• Battery operating time: approx. 20 h
• Display device cable length: 1,8 m
• Net weight: 42,2 kg
• Clinical approval: according to regulation (EU) 2017/745 (MDR)
• Verification class: III (verification optional)
• GTIN / EAN: 4045761494060
