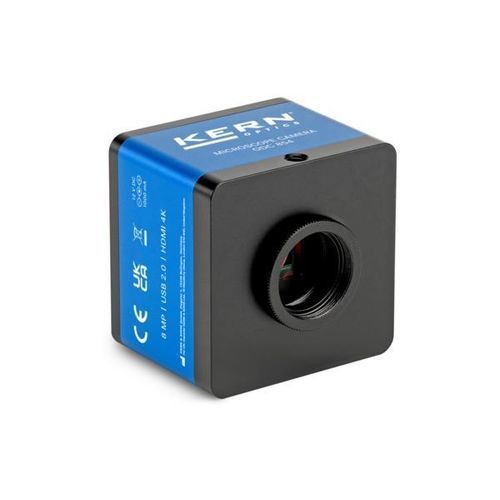

Medical video camera ODC 854

for microscopyinspectionfor laboratory microscopes

Overview

• Self-contained 4K microscope camera with advanced Sony sensor and HDMI plus USB outputs for flexible use.
• C-mount for straightforward integration with standard trinocular microscopes.
• Standalone operation without a PC via integrated HDMI functionality; simultaneous monitor and PC use via HDMI and USB.
• S-Viewer PC software available for image processing and analysis.
• Supports Microsoft Windows 7, 8, 10 and 11 (PC software: Windows 10 or 11 recommended).

Key features

• 4K resolution (3840×2160) at 30 FPS for sharp live images in real time.
• Large 1/1.8" sensor for bright, detailed captures.
• Pixel size 2×2 µm for improved signal-to-noise ratio at low illumination.
• 8-megapixel effective resolution for high-detail live reproduction.
• HDMI and USB outputs enable simultaneous display on monitor and PC.
• Integrated HDMI camera software for stand-alone use; S-Viewer for advanced PC-based analysis.
• Ideal for training, presentations and documentation through live image transmission to monitor or projector.

Applications

• Electronics and PCB inspection (fault analysis, solder joint inspection, component visual checks).
• Material testing and analysis (crack inspection, surface examination, grain size evaluation).
• Biosciences and medical labs (histology, cell analysis, tissue examination under light microscopes).
• Industrial quality assurance (final visual inspection, defect documentation).
• Teaching and training (live microscope image transmission in classrooms and lecture halls).
• Documentation and archiving (high-resolution image and video capture for reports and research).
• Clean room and semiconductor applications (monitoring fine particles and micro-defects).

Technical data (summary)
Camera - Resolution: 8 MP 4K (3840×2160)
Camera - Sensor type: Sony CMOS
Camera - Sensor size: 1/1.8"
Camera - Colour depth: Colour
Camera - Pixel size: 2×2 µm
Camera - FPS at resolution: 30 FPS, 3840×2160
Camera - Exposure time: [Min] 0.2 ms / [Max] 33.3 ms
Camera - Exposure method: Rolling Shutter
Interfaces: USB 2.0, HDMI
UI languages: German, English, French, Italian, Russian
Camera - Mounting types: C-mount
Supported operating systems: Win 10, Win 11 (PC software requirement)
Camera - Applicable software: integrated camera software (HDMI), S-Viewer (OXM 904)
Dimensions (W×D×H): 63×63×55 mm
System requirements CPU: Quad-Core, x64
System requirements RAM: 8 GB
System requirements SSD storage: 256 GB SSD
System requirements graphics card: DirectX 12
System requirements screen: 20" HD or larger
System requirements clock speeds: 2.8 GHz
GTIN/EAN: 4045761496569

Characteristics / technical specifications

• Resolution: 8 MP (4K, 3840×2160) at 30 FPS.
• Sensor: Sony CMOS, 1/1.8" format.
• Pixel size: 2×2 µm for enhanced low-light SNR.
• Exposure range: 0.2 ms – 33.3 ms; exposure method: Rolling Shutter.
• Interfaces: USB 2.0 and HDMI (simultaneous monitor and PC output).
• Mounting: C-mount for compatibility with common trinocular microscopes.
• Operation modes: standalone via integrated HDMI software; PC processing via S-Viewer.
• Supported OS: Windows 10 and 11 (wider compatibility with Windows 7 and 8 noted).
• Physical dimensions: 63 × 63 × 55 mm.
• Recommended PC specs: Quad-Core x64 CPU, 8 GB RAM, 256 GB SSD, DirectX 12 GPU, display ≥20" HD, 2.8 GHz clock.
• GTIN / EAN: 4045761496569.
