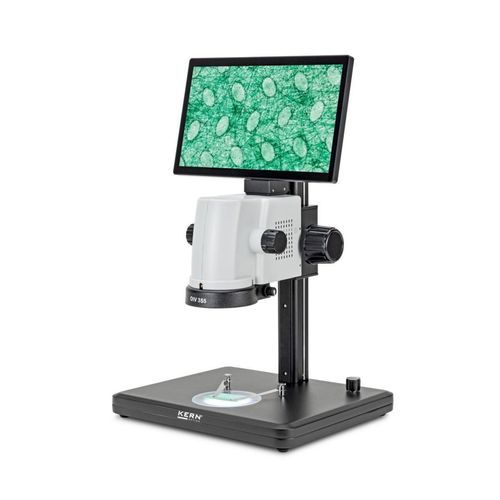

Digital video microscope OIV 355

for teachingbiologicalinspection

Overview

• The KERN OIV 355 is a video microscope engineered to optimise digital stereo microscopy and display samples directly on the integrated screen using an axial optical system.
• Combined incident- and transmitted-light illumination: a standard LED incident (ring) unit and an integrated transmitted-light LED provide flexible sample lighting for reflective and transmitted inspection.
• Large working surface suitable for monitoring, analysis and documentation in industrial environments.
• Optical unit delivers continuous sharp image tracking across the entire zoom range (0.7x–4.5x) with click-stop zoom wheels for precise magnification selection and calibration.
• Integrated 5.0 MP camera (Sony CMOS) without eyepiece, high colour reproduction and smooth live monitoring on the HD display.
• High-quality display with toughened glass, easy to clean and free of edges.
• Intuitive software and wireless USB mouse included for digital processing and storage; S-Viewer camera software available for PC download with measurement functions.
• HDMI interface supports an additional monitor for parallel real-time observation; USB connection to PC also supported.
• Interfaces: one HDMI, two USB 2.0, and a microSD card slot.
• Delivery includes protective dust cover, 32 GB USB stick, wireless USB mouse and multi-lingual user instructions. Menu languages: DE, EN, FR, IT, RU, JA, ZH.

Applications

• Quality control
• Material testing
• Electronics and semiconductor inspection
• Training and teaching
• Research
• Mineralogy
• Biology
• Laboratory workflows
• Tissue preparation
• Parasite detection

Technical Data
Optical system: Axial
Tube type: Display
Magnification ratio: 6,4:1
Click-Stop-Zoom: Yes
Zoom [Min]: 0,7x
Zoom [Max]: 4,5x
Illuminance: Reflected light, Transmitted light
Illumination intensity transmitted light: 5 W
Illumination type transmitted light: LED
Illumination intensity incident light: 3 W
Illumination type incident light: LED
Focusing mechanism: coarse drive, digital
Display type: LCD
Display screen size: 12"
Display resolution: 1920×1080 HD
Camera - Sensor type: Sony CMOS
Camera - Sensor size: 1/2,8"
Camera - Resolution: 5 MP
Camera - Framerate: 60 fps
Interfaces: USB 2.0, HDMI, MicroSD card slot
Working distance: 100 mm
Sample height [Max]: 110 mm
Stand type: mechanical
Dimension (W×D×H): 320×260×450 mm
System requirements CPU: Intel Core i3 or higher, AMD Ryzen 5 or higher
System requirements RAM: 8 GB
System requirements SSD storage: 128 GB SSD
System requirements graphics card: NVIDIA GeForce RTX 3060, AMD Radeon RX 6600
System requirements screen: 20" HD or larger
System requirements clock speeds: 2.8 GHz
GTIN/EAN number: 4045761496552

Characteristics / Technical specifications

• Model: OIV 355
• Camera resolution: 5 MP (Sony CMOS)
• Live framerate: 60 fps
• Display: 12" LCD, 1920×1080 HD
• Zoom range: 0.7x–4.5x (6.4:1)
• Working distance: 100 mm
• Maximum sample height: 110 mm
• Illumination: LED incident (3 W) and transmitted (5 W)
• Interfaces: HDMI, 2× USB 2.0, MicroSD slot
• Focusing: coarse drive, digital
• Stand type: mechanical
• Dimensions (W×D×H): 320×260×450 mm
• Included accessories: protective dust cover, 32 GB USB stick, wireless USB mouse, multi-lingual instructions
• Menu languages: DE, EN, FR, IT, RU, JA, ZH
• GTIN/EAN: 4045761496552
