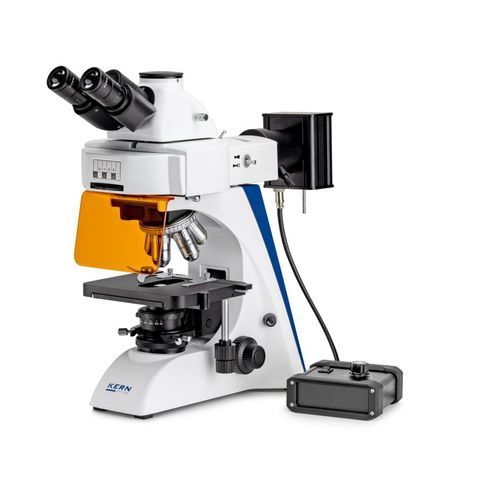

Optical microscope OBN 141

laboratoryfor life sciences applicationsfor research

Product description

• The fluorescence microscope OBN 141 is a professional trinocular instrument with Infinity-corrected optics, designed for demanding fluorescence imaging and routine laboratory use.
• LED transmitted illumination (3 W) and LED epi‑fluorescence incident illumination (5 W).
• Professional Köhler illumination with adjustable field diaphragm and a centreable Abbe condenser (NA 1.25) with adjustable aperture diaphragm.
• Very large mechanical cross stage with ergonomic coaxial coarse and fine focusing knobs on both sides for rapid, precise sample positioning and focusing.
• Filter wheel configurable up to 6 positions; supplied with standard Blue/Green fluorescence filter.
• Modular design: supports a wide range of eyepieces, Infinity‑plan objectives, colour filters, darkfield condensers, butterfly tube, polarization and phase contrast units.
• Delivery includes centring objective for fluorescence alignment, dust cover, eye cups and multilingual user manual. C‑mount adapter required for camera connection (see accessories).

Applications

• Main application fields: haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, wastewater treatment, oncology, entomology, veterinary clinics, water analysis, breweries.

Applications and samples

• Designed for translucent, thin, low‑contrast and challenging samples (e.g. immunofluorescence, FISH, DAPI staining).

Technical data
Optical system: Infinity
Tube type: Trinocular
Ocular magnification: 10× (20 mm field)
Standard objectives: 4×, 10×, 20×, 40×, 100× (Infinity Plan)
Nosepiece screw‑in locations: 5
Illumination transmitted: LED, 3 W
Illumination incident (epi): LED, 5 W
Fluorescent unit: Blue, Green (LED)
Condenser: Abbe, NA 1.25, centreable with adjustable aperture diaphragm
Focusing mechanism: coaxial coarse and fine drive; fine drive minimum 0.002 mm
Stage: large mechanical cross stage with coaxial controls both sides
Dimensions (W×D×H): 510×470×515 mm
GTIN/EAN: 4045761482449


Specifications / scope of delivery

• Model: OBN 141
• Optical system: Infinity‑corrected
• Trinocular tube (camera port available with C‑mount adapter)
• Standard eyepieces: 10× (20 mm field)
• Standard objectives: 4×–100× (Infinity Plan)
• 5‑position screw‑in nosepiece, filter wheel up to 6 positions
• LED illumination: transmitted 3 W; epi‑fluorescence 5 W (Blue/Green)
• Abbe condenser NA 1.25, centreable with adjustable aperture
• Coaxial coarse/fine focusing, fine drive min. 0.002 mm
• Included: centring objective, dust cover, eye cups, multilingual manual
• Camera connection: C‑mount adapter required (accessory)
• GTIN/EAN: 4045761482449
