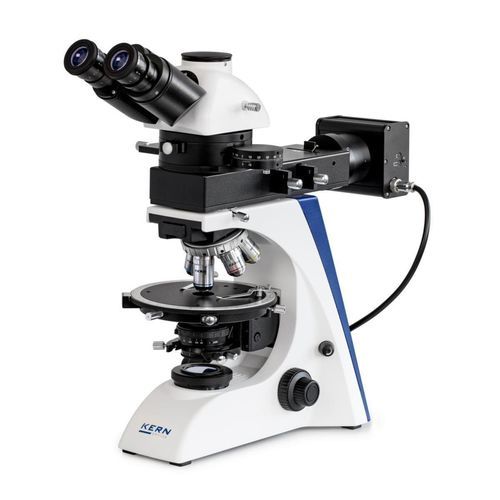

Optical microscope OPO 185

for materials researchfor researchtrinocular

Overview

• Professional polarising microscope for analysis of minerals, crystals and isotropic/anisotropic materials using light polarisation. The instrument model is KERN OPO 185.
• Combination of LED incident (reflected) and LED transmitted illumination for flexible sample observation.
• Height-adjustable 0.9/0.13 swing-out Abbe condenser with centering for complete Köhler illumination included as standard.
• 360° revolving stage with 1° division, 6' fine division and locking function integrated as standard.
• Wide range of accessories available: mechanical stage attachments, long working distance objectives, filter units, camera adapters (C‑Mount), etc. Protective dust cover, eye cups and multilingual manual included.

Technical data (summary)
Optical system: Infinity
Tube type: Trinocular
Ocular magnification: 10x
Ocular visual field: 20 mm
Standard objectives: 4×, 10×, 20×, 40×, 50×
Nosepiece screw-in locations: 5
Illuminance modes: Reflected light, Transmitted light
Illumination intensity (transmitted): 5 W, LED
Illumination intensity (incident): 5 W, LED
Condenser type: Abbe (swing-out), Aperture: 0.9 / 1.25
Focusing mechanism: Coaxial coarse and fine drive; fine drive minimum 0.002 mm
Dimensions (W×D×H): 500×200×500 mm
GTIN/EAN: 4045761490048


Applications

• Main fields: mineralogy, texture observation, materials testing, crystal examination.
• Suitable for complex preparations exhibiting polarising properties and detailed petrographic or materials analysis.

Scope of delivery / Standard equipment

• LED incident and transmitted illumination (combination).
• Height-adjustable swing-out Abbe condenser (0.9/0.13) with centering for Köhler illumination.
• 360° revolving stage with 1° division, 6' fine division and locking function.
• Protective dust cover, eye cups, multilingual user instructions.
• Note: For camera connection a C‑Mount adapter is required (available as accessory).

Technical specifications

• Optical system: Infinity
• Tube: Trinocular (camera connection via C‑Mount adapter)
• Oculars: 10x, field 20 mm
• Objectives (standard): 4×, 10×, 20×, 40×, 50×; 5-position nosepiece
• Illumination: LED transmitted 5 W (Köhler), LED incident 5 W
• Condenser: Abbe swing-out, NA 0.9 / 1.25, height-adjustable
• Focusing: Coaxial coarse/fine, fine drive min. 0.002 mm
• Stage: 360° revolving, 1° division, 6' fine division, locking
• Dimensions: 500 × 200 × 500 mm
• GTIN/EAN: 4045761490048
