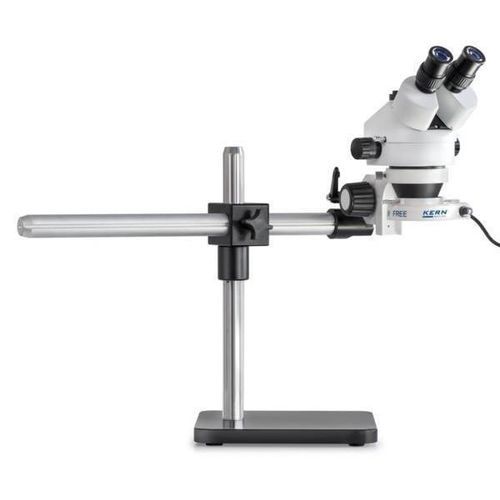

Optical stereo microscope OZL 961

for teachinginspectionbinocular

Product overview

• Predefined stereo microscope set including stereo head, universal telescopic arm stand (with plate), holder, LED ring incident illumination (4.5 W) and dust cover.
• Simple – convenient – cost-effective: factory-defined combination saves time on configuration and component selection.
• The KERN OZL-961 is a stereo zoom microscope offering easy handling, flexibility and stability; suitable for training, workshops, assembly and repair workstations (e.g. electronics).
• Included LED ring incident illumination (4.5 W) provides consistent lighting for inspection and assembly.
• Universal telescopic arm stand is ideal for large samples and free working under the microscope.

Technical data (table)
Optical system: Greenough
Tube type: Binocular
Ocular magnifications: 10x
Ocular visual field: 20 mm
Magnification ratio: 6.4:1
Zoom [Min]: 0.7x
Zoom [Max]: 4.5x
Illuminance: Reflected light
Illumination intensity incident light: 4.5 W
Illumination type incident light: LED
Focusing mechanism: coarse drive
Working distance: 100 mm
Sample height [Max]: 140 mm
Stand type: universal (telescopic arm with plate)
Dimensions (W×D×H): 700×255×600 mm
GTIN/EAN number: 4045761189430


Description details (bullets)

• Objective zoom range: 0.7x – 4.5x.
• Magnification range and 10x oculars suited for inspection, assembly and repair tasks; large working distance for manual handling.
• Coarse focusing drive ensures stable and easy focusing of samples.
• Set delivers a ready-to-use, economical and flexible solution for microscope workstations.

Characteristics / technical specifications

• Model / Denomination: KERN OZL-961
• Optical system: Greenough
• Head: Binocular tube
• Oculars: 10x (visual field 20 mm)
• Zoom range: 0.7x – 4.5x (magnification ratio 6.4:1)
• Incident illumination: LED ring, 4.5 W
• Reflected light: yes
• Focusing mechanism: coarse drive
• Working distance: 100 mm
• Maximum sample height: 140 mm
• Stand: universal telescopic arm with plate
• Dimensions (W×D×H): 700 × 255 × 600 mm
• GTIN / EAN: 4045761189430
