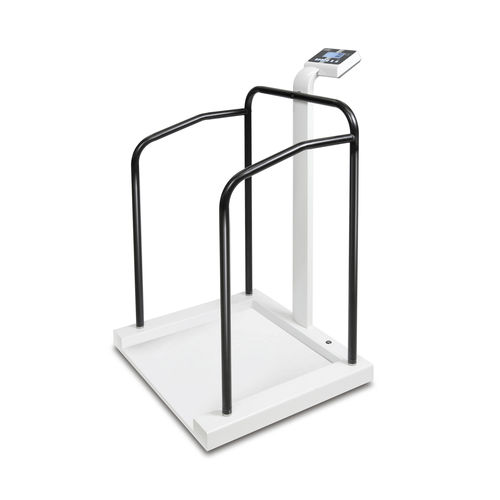

Electronic patient weighing scale MTA 400K-1M

digitalmedicalfor humans

Description
Approved as a medical device according to regulation (EU) 2017/745. Sturdy handrail standing aid scale for professional medical use in diagnostics and patient care. The support rail and stable construction help fragile or weak patients to stand securely while allowing precise weight measurement. Large hygienic platform with easy access via a low profile height of 30 mm. Level indicator for exact levelling. Practical second display on the rear for reading by patient and staff. Battery- or mains-powered (rechargeable battery optional). Protective working cover included. Verification (conformity assessment in accordance with NAWI 2014/31/EU) optional.

Main features

• Approved as a medical device (EU 2017/745)
• Sturdy handrail / standing aid to support patients during weighing
• Large hygienic platform surface; low access height (30 mm)
• Level indicator for precise levelling
• Hold function: determines an average weight for patients unable to stand/sit still
• Second display on the rear for patient and staff readability
• BMI function to indicate underweight/normal weight/overweight
• Battery operation; rechargeable battery optional; mains operation possible
• Protective working cover included

Technical Data (table)
Weighing capacity [Max]: 300 kg; 400 kg
Readability [d]: 0,1 kg; 0,2 kg
Units: kg
Interfaces: RS-232 standard
Dimensions weighing platform (W×D×H): 780×680×68 mm
Supplied power supply: Power supply & battery function (battery not included)
Battery operating time: 20 h
Rechargeable battery operating time - backlight off: 40 h
Net weight: 40,02 kg
Conformity assessment possible ex works: yes
Approval in accordance with 2017/745 (MDR, med.): yes
Construction type of the scale: Multi-range balance
GTIN/EAN number: 4045761193017

Applications

• Care homes
• Geriatric wards and centers
• Internal medicine departments
• Rehabilitation facilities
• Facilities for people with disabilities
• Ambulatory and inpatient medical facilities

Characteristics / technical specifications

• Model: MTA 400K-1M
• Weighing capacity: 300 kg or 400 kg
• Readability: 0.1 kg or 0.2 kg
• Units: kg
• Interface: RS-232 (standard)
• Platform dimensions (W×D×H): 780 × 680 × 68 mm; platform height: 30 mm
• Power: Mains and battery function (battery not included); rechargeable battery optional
• Battery charging time: 20 h
• Battery operating time (backlight off): approx. 40 h
• Net weight: 40.02 kg
• Construction: Multi-range balance
• Approval: Medical device (EU 2017/745); conformity assessment possible ex works
• Functions: Hold, BMI, second rear display, level indicator
• GTIN / EAN: 4045761193017
