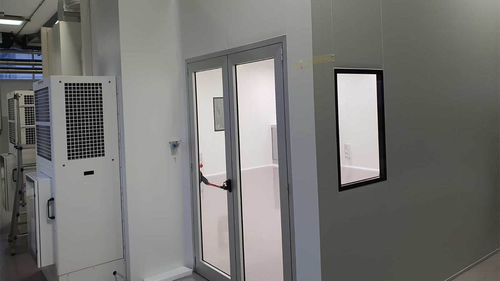

Clean room wall structure HARDWALL

modular

Hardwall modular clean room walls are a superseded system, that meets cleanroom standards up to ISO 4 class. In addition, with a standard thickness of 50mm, the structure provides a composite, a class 1 fire reaction polyurethane core. The vertical wall panels form a perfectly coplanar surface with an optimized pitch to achieve the required size, therefore the hardwall allows assembly even by non-specialized professionals. Modular structure Hardwall modular clean room wall kits are available in two different types. The standard kit provides a pre-painted iron sheet in RAL 9010 or AISI 304 with concealed quick-release coupling system. The pharma kit offers 2.5 mm thick plastic laminate surfaces, in white or white-green, with an internal metal stiffening frame and connection system with tongue and groove joint. We provide a suspended ceiling with panels similar to vertical sections and a double suspended ceiling for ISO5 laminar flow classes and higher. The thickness of the ceiling is depending on span widths. Configuration tailored to your specific processes door interlocking, material passbox, air shower, self-contained OMK extraction unit for positive pressure control, single-phase or three-phase electrical sockets IP54-65, wall plates for electrical or hydraulic sockets, analog measuring stations for differential pressure or pressure drop WINDOWS The windows are single-pane structures with anodized aluminum frames and interlocking profiles. The frameless double-glazed METAL line is fixed to the wall through holes in the factory-prepared guides. LIGHTING Hardwall structure provides built-in housing and LED lamps with low-voltage DC ballast,
