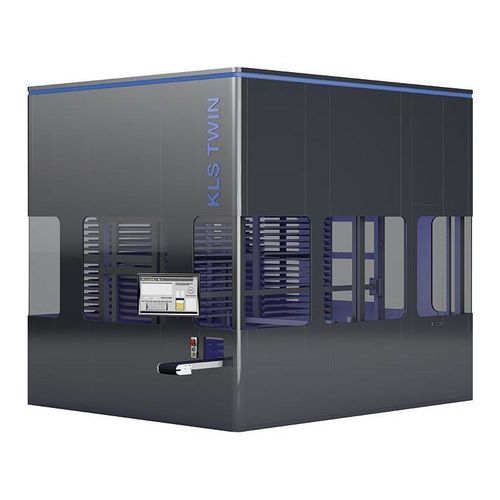

Pharmacy dispensing robot KLS TWIN MP

for drugsfor medicineautonomous

Overview
KLS Twin MP is a two-column drawer robot offering large storage capacity while maintaining a compact footprint. It is designed to automate box handling in pharmacies with a MultiPicking head for fast and flexible operations.

Specification summary
Functionality: 2 adjacent drawer columns
Head: MultiPicking head
Capacity: Up to 20,000 boxes
Width: 2.75 to 3.85 m
Length: 2.15 to 3.55 m
Height: 2.00 to 4.00 m

Key features

• MultiPicking head for multiple picks
• Storage capacity up to 20,000 boxes
• Modular dimensions (width, length, height configurable)
• MultiPicking: ability to move up to 3 boxes in a single motion
• Indicative output rate: 450 boxes/h in MonoPicking (indicative value based on KLS performance)
• Support for boxes up to 1.2 kg

Compatible options

• Handling of round packages (vials, bottles, homeopathic tubes…)
• Label printer
• Integrated refrigerator (capacity 200 to 600 boxes)
• Video surveillance
• Object detection inside the robot
• Choice of cabinet color
• Enhanced sound insulation "Super Silence" 32 dB

Technical specifications

• Functionality: 2 adjacent drawer columns
• Head: MultiPicking head
• Capacity: Up to 20,000 boxes
• Width: 2.75 to 3.85 m
• Length: 2.15 to 3.55 m
• Height: 2.00 to 4.00 m
• Box weight support: up to 1.2 kg
• Indicative performance: 450 boxes/h in MonoPicking
